Tunze Osmolator 3
Description
The new TUNZE® Osmolator® 3 builds on decades of proven technology and has been further optimized in numerous details. The result: even greater operational reliability, ease of use and durability.

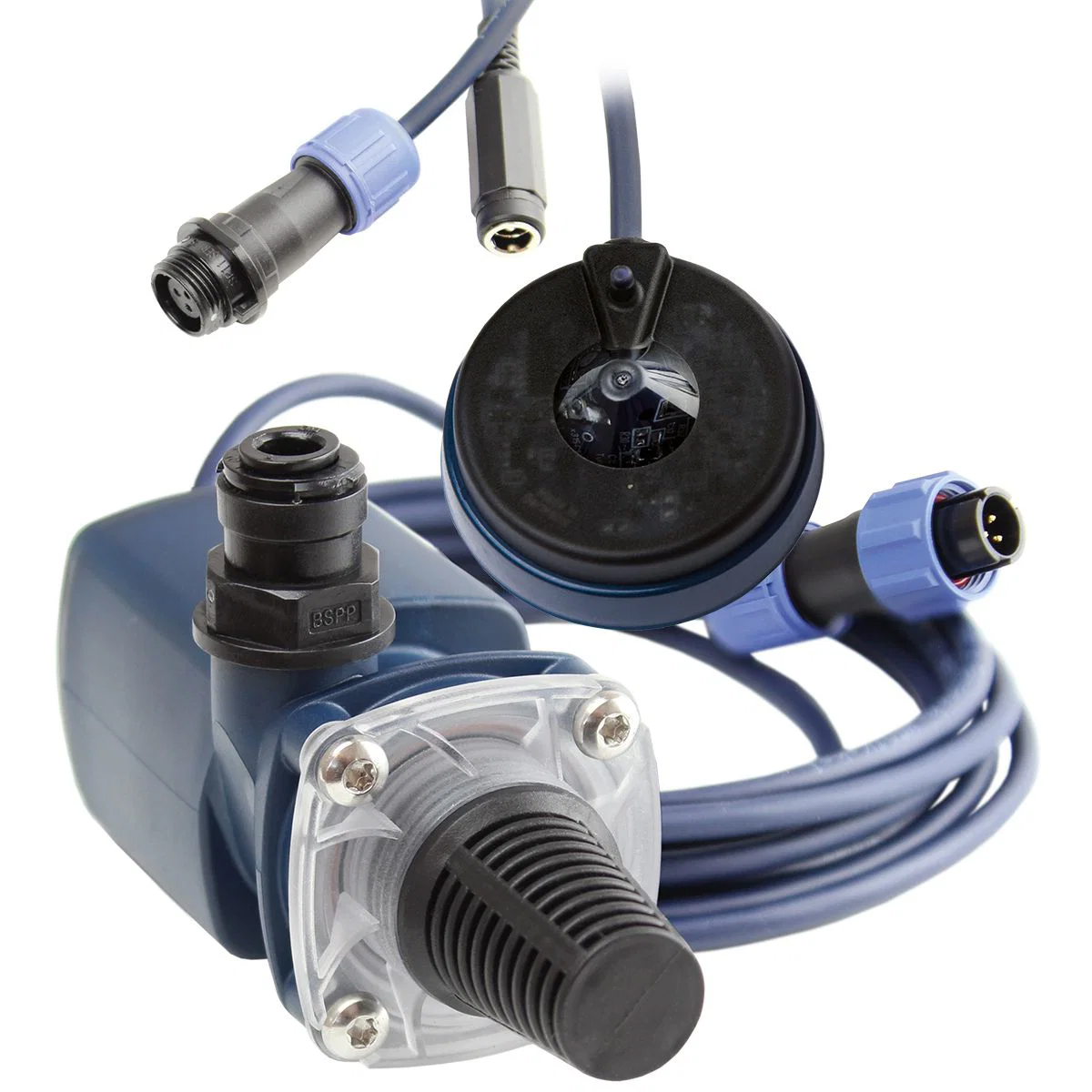

Straightforward and safe water level controller for fresh and sea water with optical control sensor and independent thermal safety sensor. A constant water level keeps the salt concentration constant in seawater aquariums. Incl. Turbelle® High Jet 5030 pump with dry run and blockage protection, magnet holder, branded 12V DC power supply unit, tube and tube holder. Suitable for placement in cabinet filter systems or on the edge of the aquarium. The sensor holds on glass panes up to 15 mm (0.59”) and the tube holder up to 22 mm (0.87”).
Technical specifications :
Sensor
Rated input voltage: 12 V DC SELV
Power consumption during measuring operation: 0.7 W
Power consumption during pump operation: 5–8.5 W
Operating ambient temperature: 15–45°C (59–113°F)
Operating water temperature: 0–35°C (32–95°F)
Detection accuracy: 0.5 mm (0.02")
The actual water level fluctuation depends on the aquarium volume and pump performance.
Pump
Power supply: 3P from sensor
Maximum flow rate – Standard: 160 L/h (42.3 US gal./h)
Maximum delivery head – Standard: 3.0 m (9.84')
Maximum flow rate – Boost: 180 L/h (47.6 US gal./h)
Maximum delivery head – Boost: 6.2 m (20.34')
Power supply
Rated input voltage: 100–240 V
Rated input frequency: 50–60 Hz
Rated input current: 0.5–0.25 Arms
Output voltage: 12 V DC
Rated output current: 1.5 A
Minimum refill container opening
With standard connector: 75 mm (2.95")
With short tube connector 5030.201: 58 mm (2.28")
Suitable glass thickness
Sensor: up to 15 mm (0.59")
Tube holder: up to 22 mm (0.87")
Straightforward and safe water level controller for fresh and sea water with optical control sensor and independent thermal safety sensor. A constant water level keeps the salt concentration constant in seawater aquariums. Incl. Turbelle® High Jet 5030 pump with dry run and blockage protection, magnet holder, branded 12V DC power supply unit, tube and tube holder. Suitable for placement in cabinet filter systems or on the edge of the aquarium. The sensor holds on glass panes up to 15 mm (0.59”) and the tube holder up to 22 mm (0.87”).
Technical specifications :
Sensor
Rated input voltage: 12 V DC SELV
Power consumption during measuring operation: 0.7 W
Power consumption during pump operation: 5–8.5 W
Operating ambient temperature: 15–45°C (59–113°F)
Operating water temperature: 0–35°C (32–95°F)
Detection accuracy: 0.5 mm (0.02")
The actual water level fluctuation depends on the aquarium volume and pump performance.
Pump
Power supply: 3P from sensor
Maximum flow rate – Standard: 160 L/h (42.3 US gal./h)
Maximum delivery head – Standard: 3.0 m (9.84')
Maximum flow rate – Boost: 180 L/h (47.6 US gal./h)
Maximum delivery head – Boost: 6.2 m (20.34')
Power supply
Rated input voltage: 100–240 V
Rated input frequency: 50–60 Hz
Rated input current: 0.5–0.25 Arms
Output voltage: 12 V DC
Rated output current: 1.5 A
Minimum refill container opening
With standard connector: 75 mm (2.95")
With short tube connector 5030.201: 58 mm (2.28")
Suitable glass thickness
Sensor: up to 15 mm (0.59")
Tube holder: up to 22 mm (0.87")
Specifications
Precise and reliable water level control

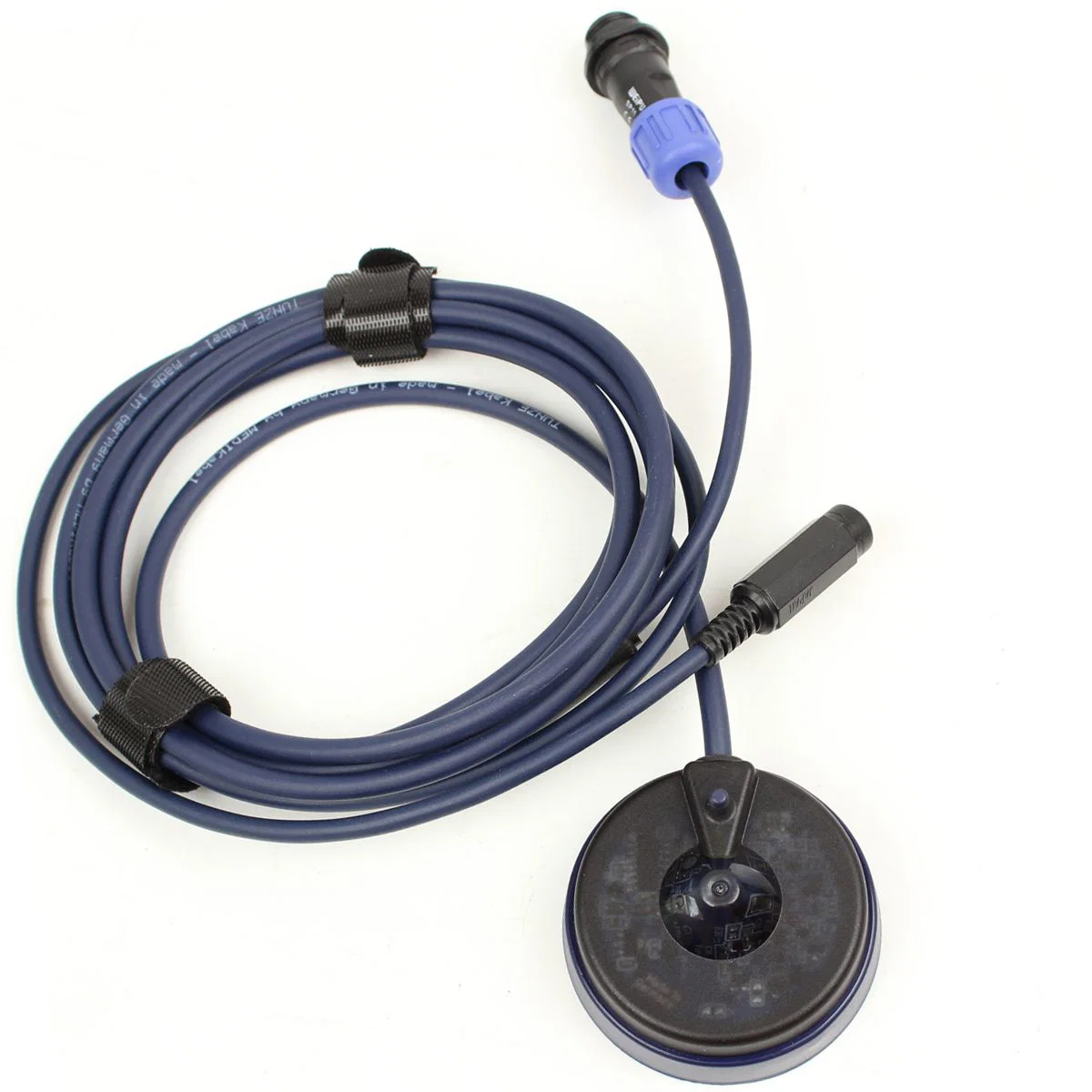

The large, precise optical sensor detects the water level with an accuracy of 0.5 mm, resists air bubbles, deposits and scratches. The independent thermal safety sensor stops the Turbelle® High Jet 5030 pump in the event of overfilling, ensuring 100% overflow protection.
Optimized safety sensor
The thermal safety sensor has been further refined in its design, providing even greater long-term stability and operational reliability.
New high-performance material for the sensor housing
The transparent sensor housing is now made from Eastman Tritan™ copolyester. This high-quality material offers high impact strength, excellent transparency, and high resistance to hydrolysis and chemicals. Combined with the structurally reinforced design, it provides additional safety margins for reliable long-term operation.
Discreet status LEDs
Discreet status LEDs The brightness of the status LEDs has been optimized. All operating states remain clearly visible, while unwanted algae growth on the sensor is reduced.
New strainer
The standard strainer reliably protects the dosing pump from larger debris, further increasing operational reliability.
Even quieter

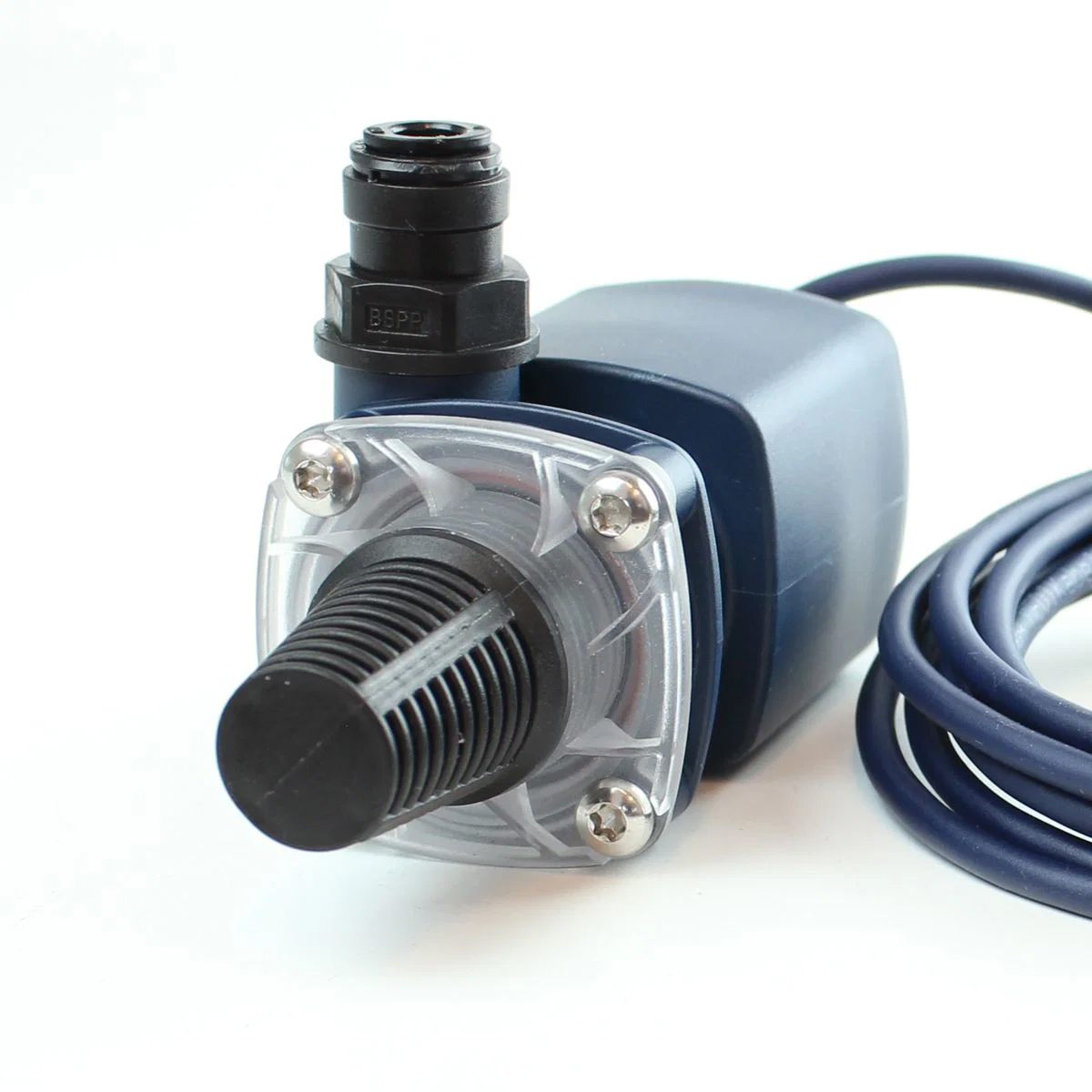

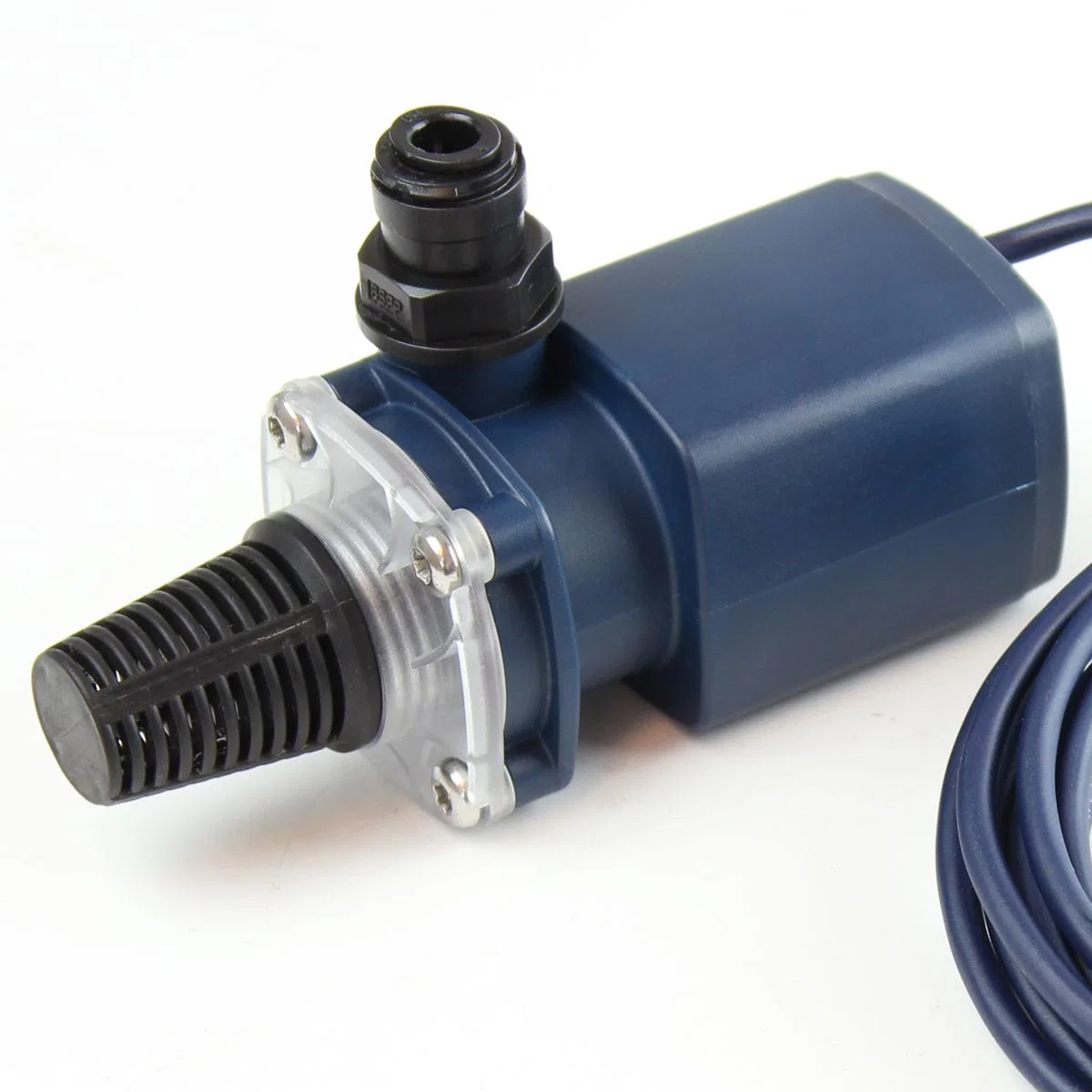

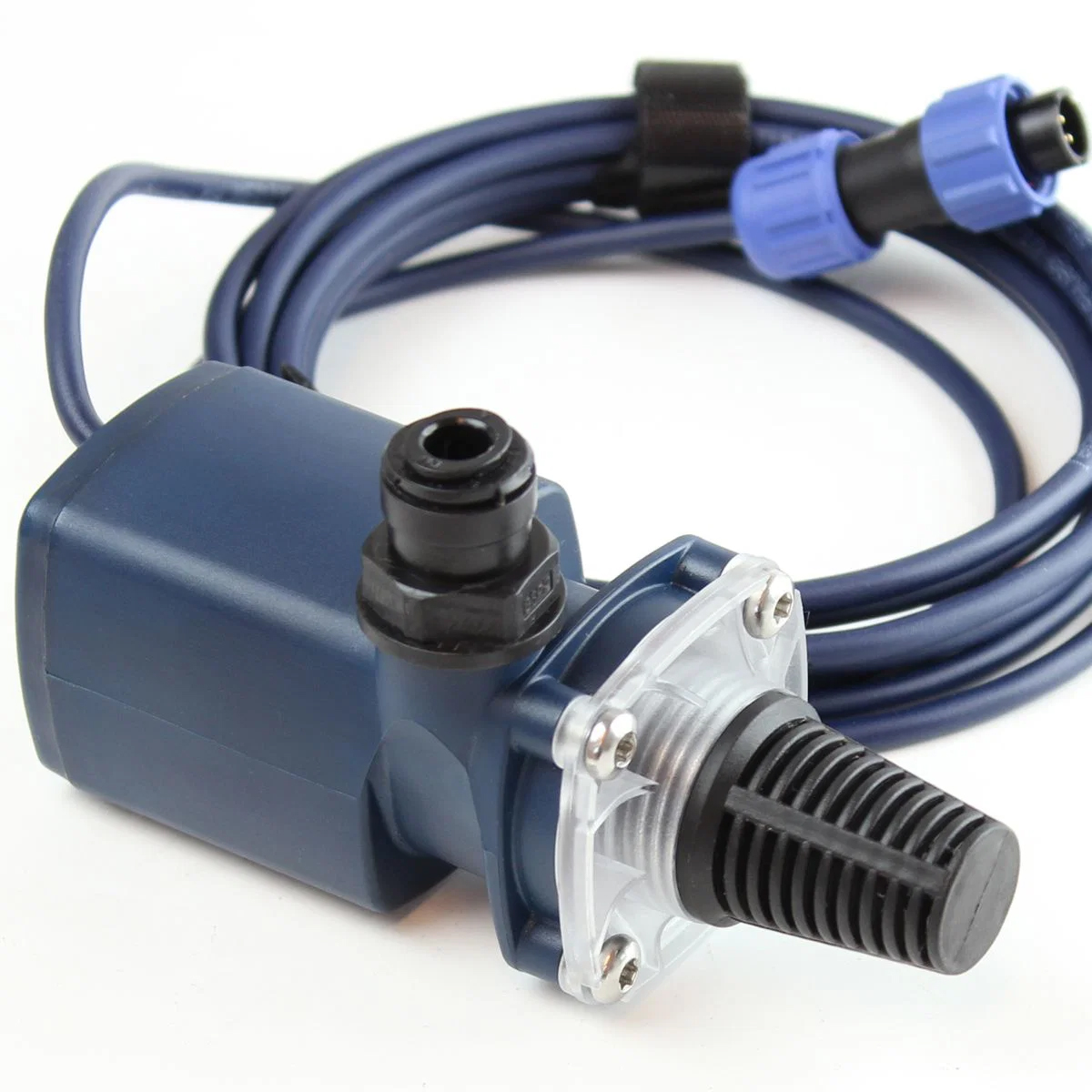

The further developed Turbelle® High Jet 5030 operates even more quietly, while its true 3-phase sine-wave drive ensures exceptionally smooth operation.
Plug & Play
All required components are ready for installation in the package (except reservoir). No software setup required. The fixed parameters are based on many years of experience.
Compact all-in-one construction
With magnet holder and tube holder for an attachment to any aquarium edge or in the aquarium filter up to 15 mm (2/3"). The tube holder holds on up to 22mm (0.87").

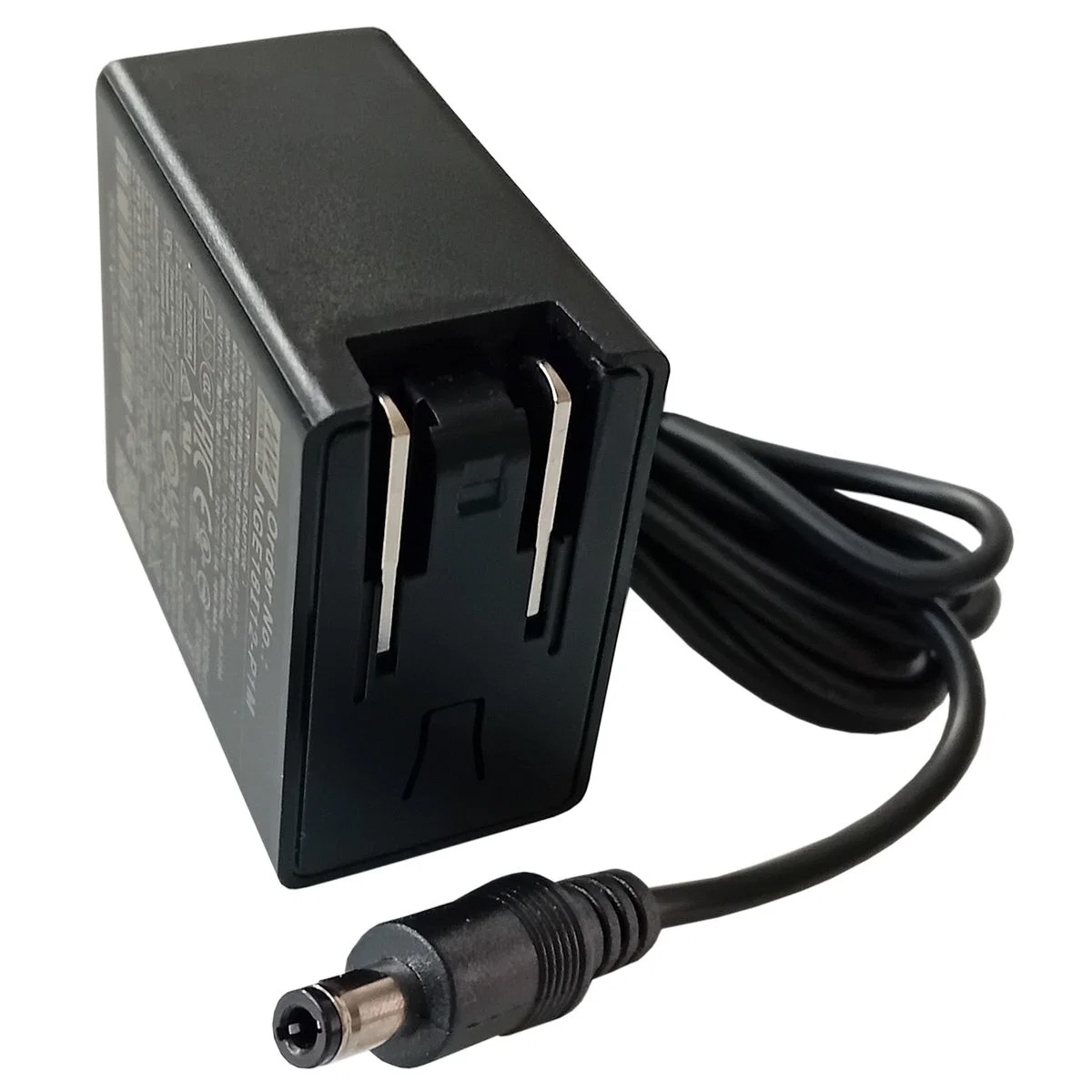

Certified medical device power supply
maximum safety
Medical device-certified power supply with high operational reliability, power reserves, and high efficiency. A strong heart for your TUNZE® ORCA.
Medical device-certified power supply with high operational reliability, power reserves, and high efficiency. A strong heart for your TUNZE® ORCA.
Includes hose and hose connector
The set includes a corrosion-resistant, screw-in push-in fitting (¼ inch BSP to ø6 mm). In addition, a PU hose made entirely in Germany - low-emission, hydrolysis-resistant, microbe-resistant, flexible, but does not tend to kink when laid.
Tool-free installation
Reusable hook-and-loop straps replace cable ties, enabling quick, clean and tool-free installation
5 years warranty
"Built to last" according to our highest standards. Our exclusive service is automatically included. Without registration and without hidden hurdles. And of course always accommodating instead of petty-minded.
Made in Germany
It doesn't matter whether it's the special plastic parts from our own injection molding department, the winding of the motor, the soldering of the coils to the electronics, the encapsulation, the assembly of the individual parts and the testing of each pump, the pump is traditionally manufactured at our headquarters.
