Tunze Osmolator 3 Nano
- Simple and reliable water level controller for aquarium systems up to approx. 250 liters
- Compact all-in-one design
- Plug & Play – all required components ready for installation
- Includes durable high-tech dosing pump
- Maximum delivery head: 3.0 m (9.84')
Description
The new TUNZE® Osmolator® 3 nano builds on decades of proven technology and has been further optimized in numerous details. The result: even greater operational reliability, ease of use and durability.
The Osmolator® 3 nano is a simple and safe device with just one sensor for maintaining a constant water level in aquarium systems up to approx. 250 liters (66 US gal.), can be placed in cabinet filter systems or directly on the edge of the aquarium. The sensor works on glass panes up to 12 mm (1/2”) . The hose holder holds up to 22 mm (0.87”) .

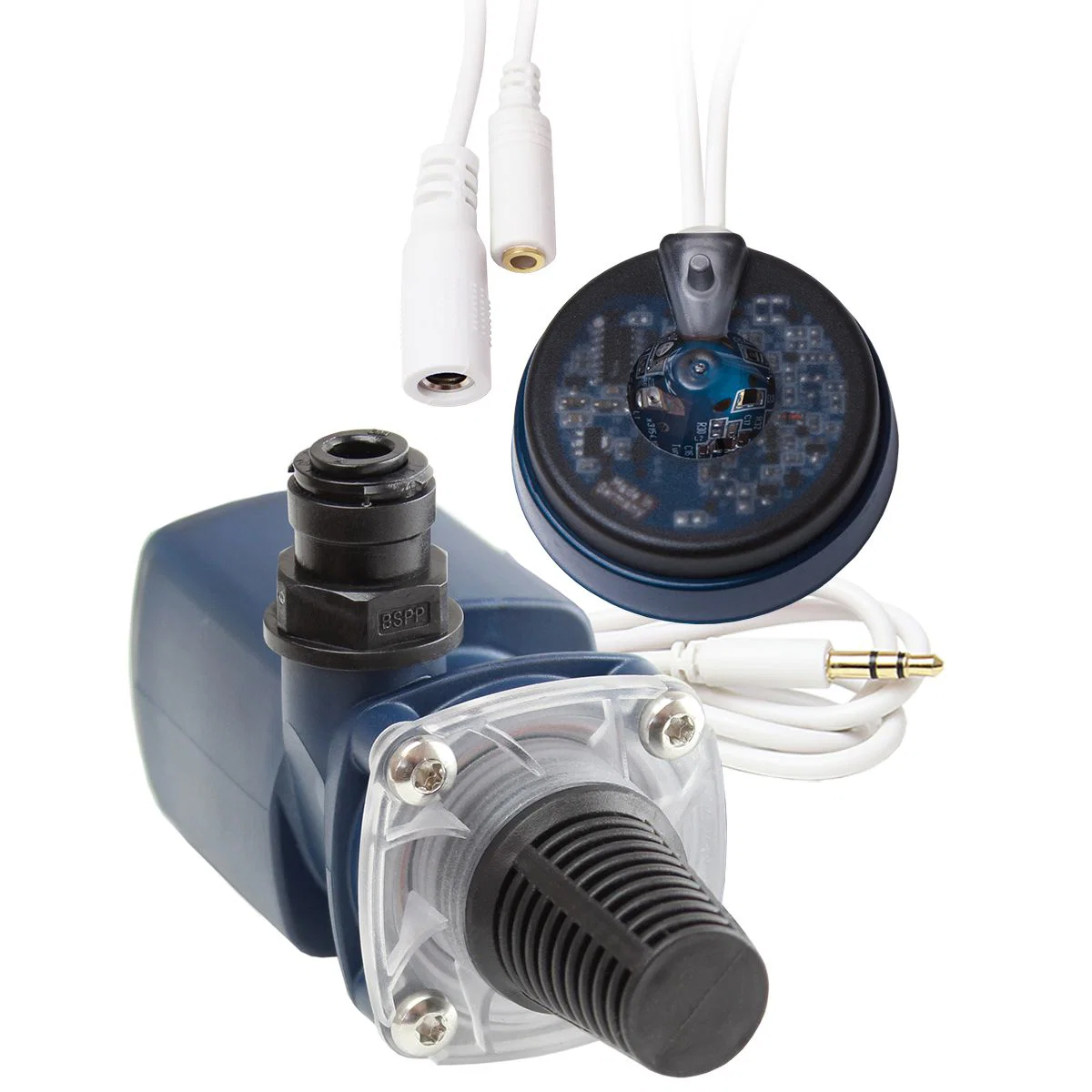

Scope of delivery: ready to install with 12V power supply, low-voltage dosing pump, 3 m hose, hose holder, magnet holder up to 12 mm and protective cover for the sensor.
Technical specifications :

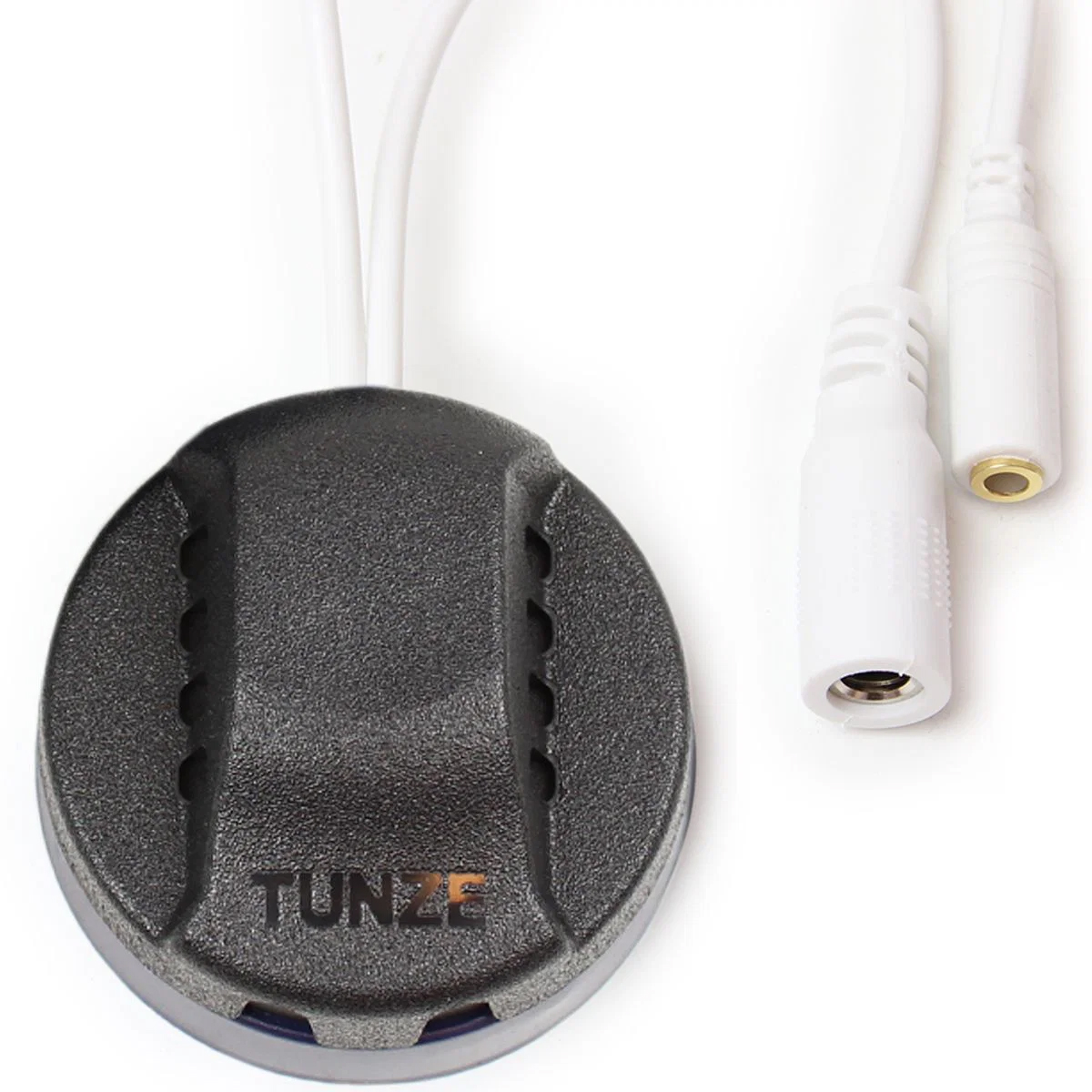

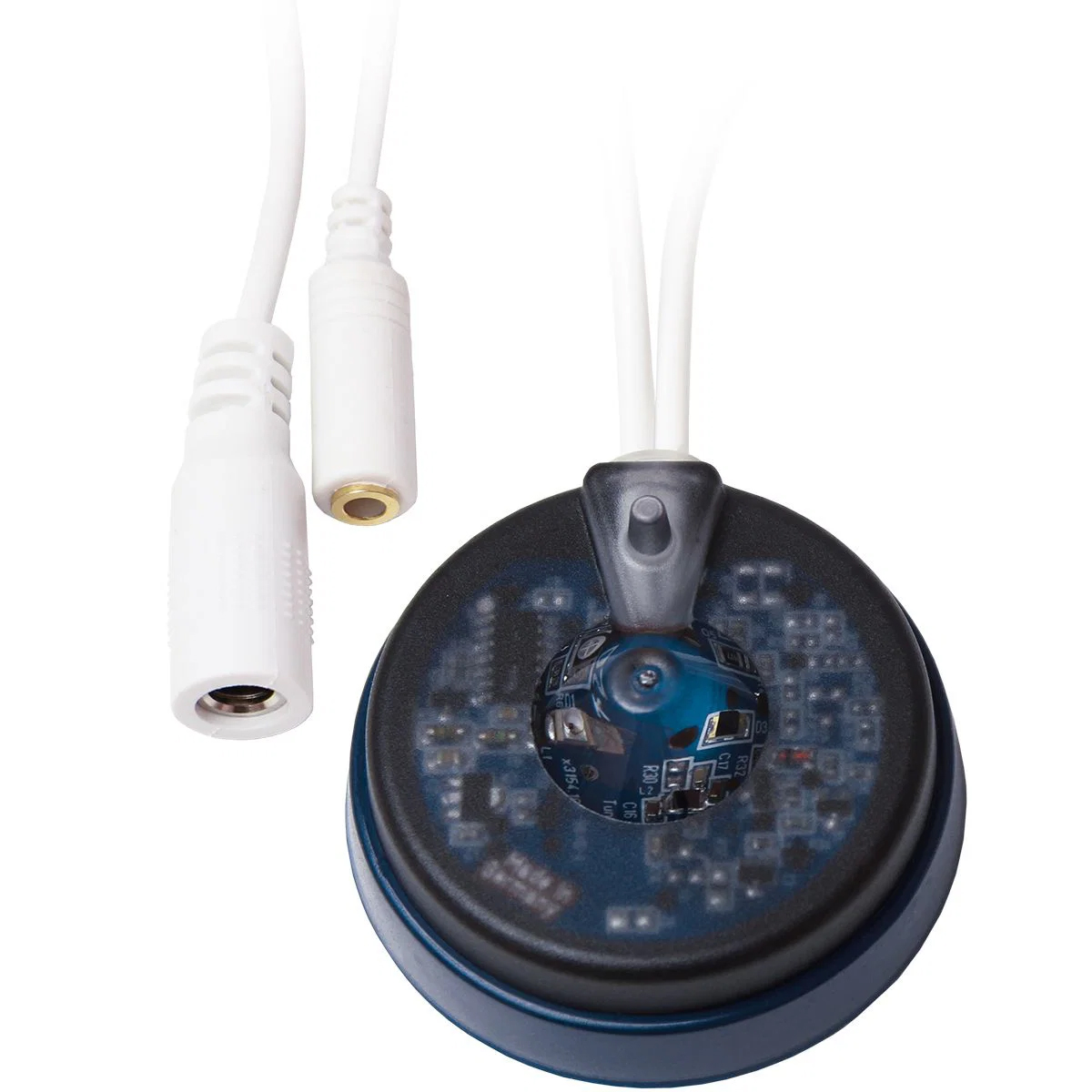

Sensor
Rated input voltage: 12 V DC SELV
Power consumption during measuring operation: 0.7 W
Power consumption during pump operation: 5 W
Operating ambient temperature: 15–45°C (59–113°F)
Operating water temperature: 0–35°C (32–95°F)
Detection accuracy: 0.5 mm (0.02")
The actual water level fluctuation depends on the aquarium volume and pump performance.

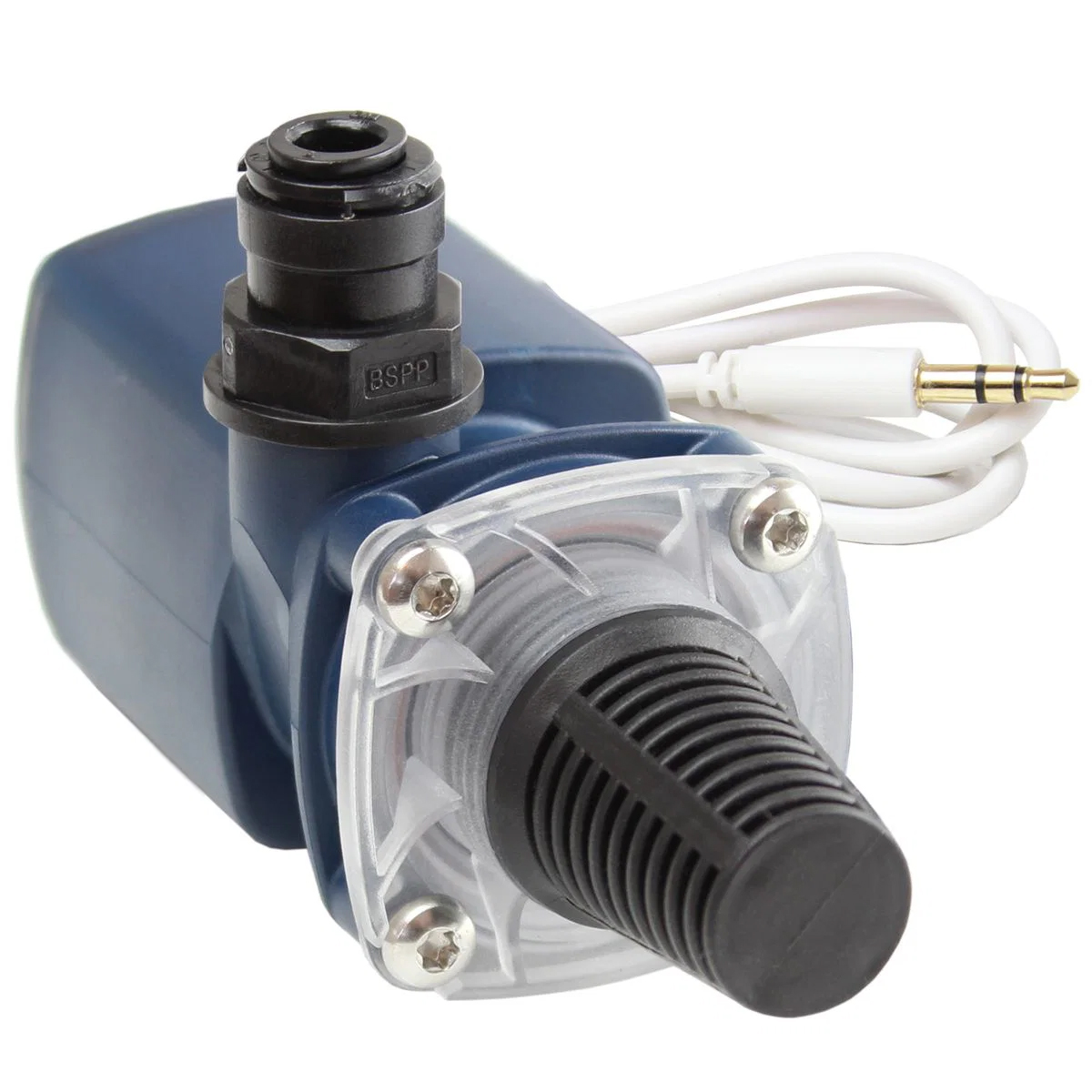

Pump
Power supply: 3P from sensor
Maximum flow rate: 160 L/h (42.3 US gal./h)
Maximum delivery head: 3.0 m (9.84')

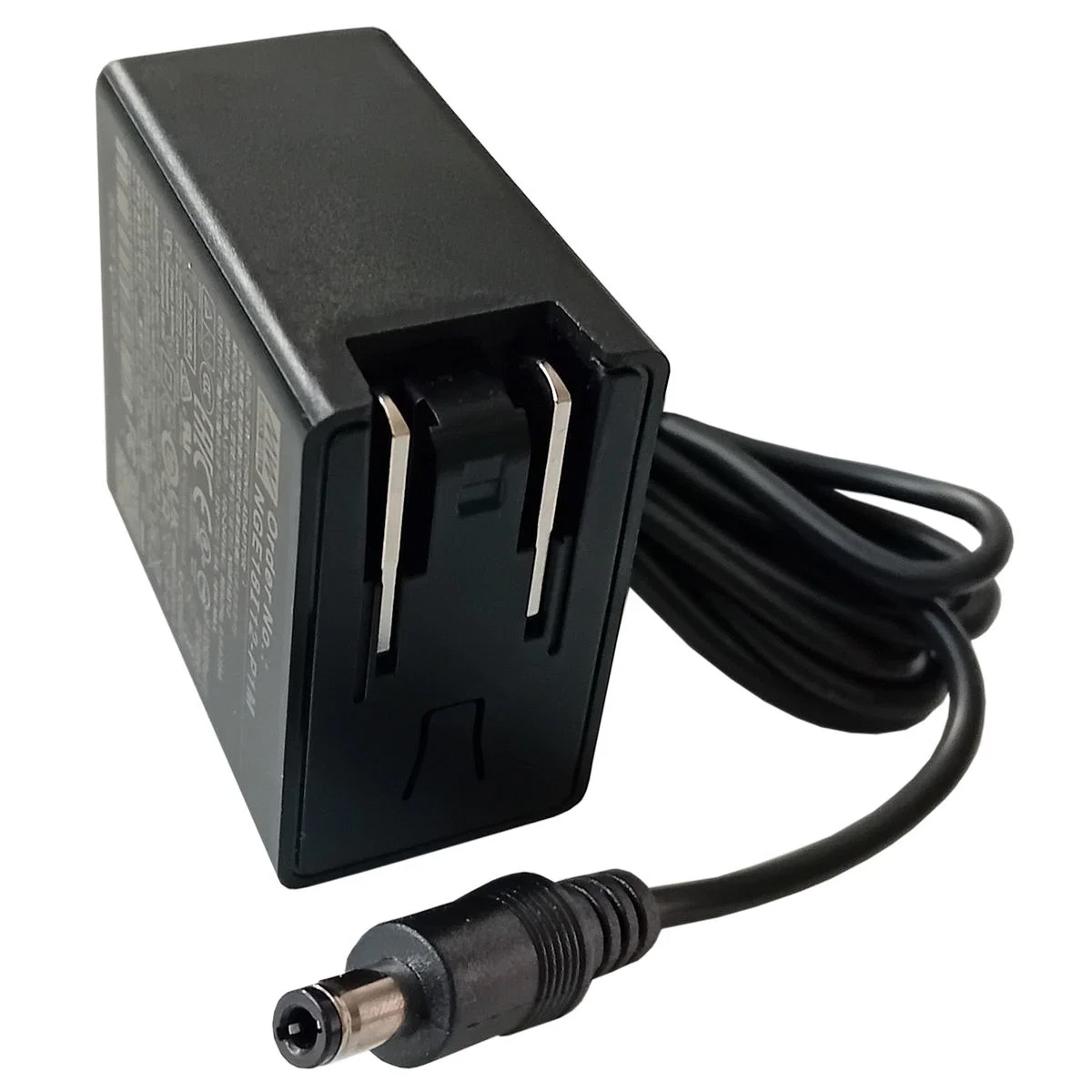

Power supply
Rated input voltage: 100–240 V
Rated input frequency: 50–60 Hz
Rated input current: 0.5–0.25 Arms
Output voltage: 12 V DC
Rated output current: 1.5 A
Minimum refill container opening
With standard connector: 75 mm (2.95")
With short tube connector 5030.201: 58 mm (2.28")
Suitable glass thickness
Sensor: up to 12 mm (0.47")
Tube holder: up to 22 mm (0.87")
