ATI Straton X Flat Panel LED Light - Anthracite Gray
The ATI Straton X Flat Panel LED Light redefines minimalist reef lighting with revolutionary G3 performance in an ultra-slim, fanless design. Engineered for maximum efficiency, silent operation, and exceptional light output, the Straton X combines cutting-edge LED technology with premium materials to deliver powerful, evenly distributed reef lighting in a fixture just 9 mm thick.
- Ultra-Slim, Fanless Design
- Silent Operation
- Exceptional PAR Output
- Uniform Light Spread with Wide Coverage
- Energy Efficient
- Smartphone App Control
- Flexible Mounting Options
Outstanding Performance
With an average PAR of 390 over a 60 × 60 cm area at just 150 W, the Straton X achieves an exceptional efficiency of 2.6 PAR per watt. Advanced G3 LED technology allows the fixture to produce up to twice as much usable light as many competing systems with similar power consumption.
Broad & Even Light Distribution

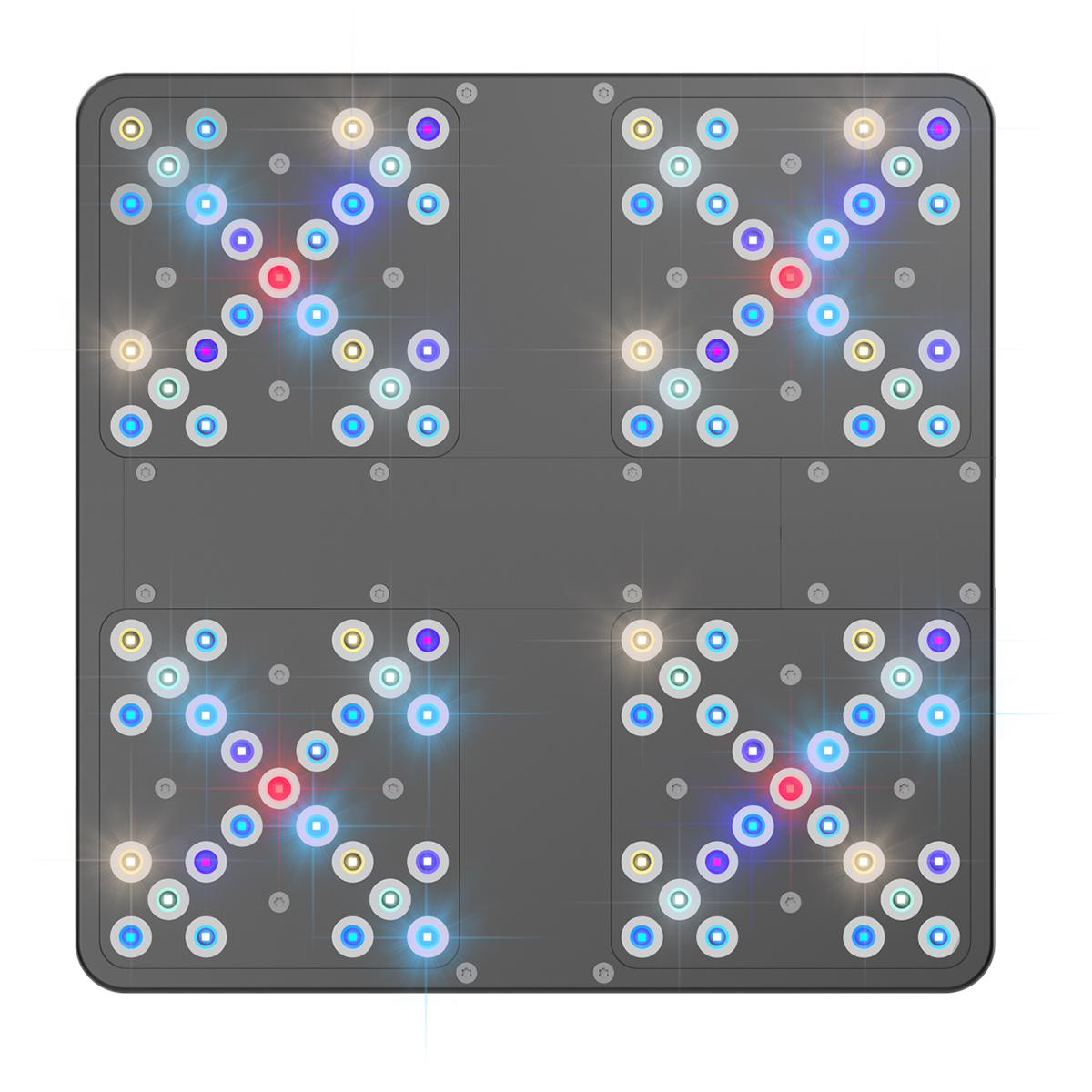

A large illumination surface with 100 individually reflected LEDs ensures uniform PAR distribution across the aquarium, minimizing hotspots, reducing coral self-shading, and promoting balanced, healthy growth throughout the tank.
Next-Level Monitoring
The Straton X delivers measurable, transparent performance backed by real data. Integrated PAR and power monitoring allow users to view live performance metrics directly in the control app, making coral placement precise and reliable.
Glare-Free Illumination
Each LED includes a precision-engineered reflector that directs light into the aquarium where it is needed. Flush-mounted optics eliminate glare and uncontrolled light spill for a clean, comfortable viewing experience.
Hybrid Reef Spectrum
The Straton X produces a true full reef spectrum with an enhanced blue range to maximize coral fluorescence and growth. Intensified royal blue and blue channels enhance color pop, while optimized white and cyan tones increase overall brightness and visual clarity.
Soft Shadow Technology
By spreading light across a wide surface area rather than a single point source, the Straton X delivers multi-angle illumination that reduces harsh shadows and supports uniform coral growth.
Natural Shimmer
The light produces a realistic shimmer effect, recreating the dynamic play of light found on natural coral reefs for a more realistic appearance.
Overdrive Power Management
Advanced control logic allows individual channels to exceed 100% intensity if other channels are running at less than 100%. This dynamic power redistribution maximizes total output without exceeding thermal or electrical limits.
Runs Cool & Silent

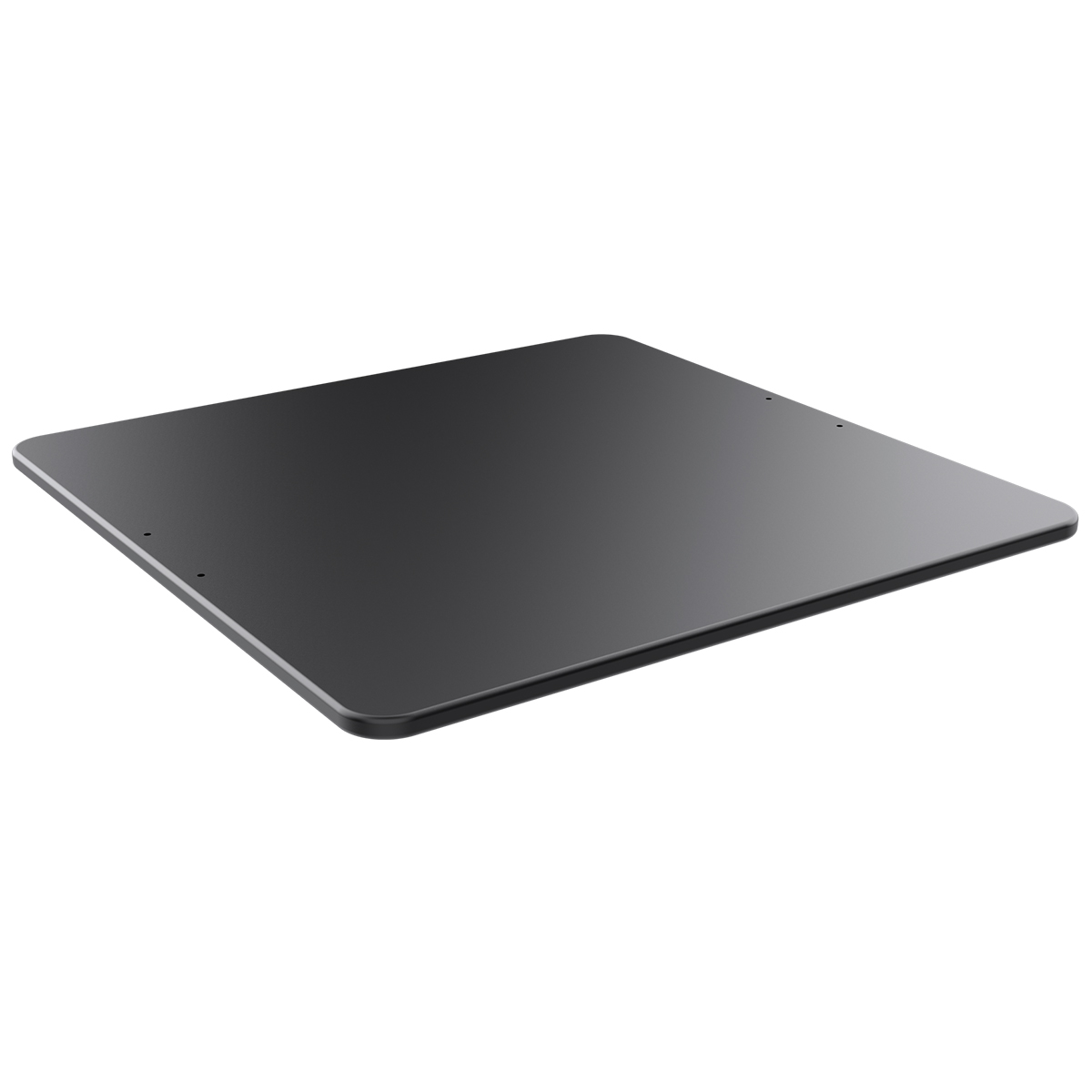

The solid aluminum housing acts as a highly efficient heat sink, eliminating the need for cooling fans. The result is a completely silent operation with excellent thermal management and long LED lifespan.
App Controllable
The ATI Reef Pilot App for iOS and Android provides full control over intensity, spectrum, and schedules, with real-time monitoring.
Flexible Mounting Options
The modular mounting system supports cable suspension, mounting rails, or a seamless mounting arm that visually disappears above the aquarium for a clean, modern presentation.
Made in Germany
Manufactured entirely in Germany, the Straton X reflects over 25 years of ATI lighting expertise. Precision-milled aluminum construction and in-house assembly ensure exceptional quality, durability, and performance.

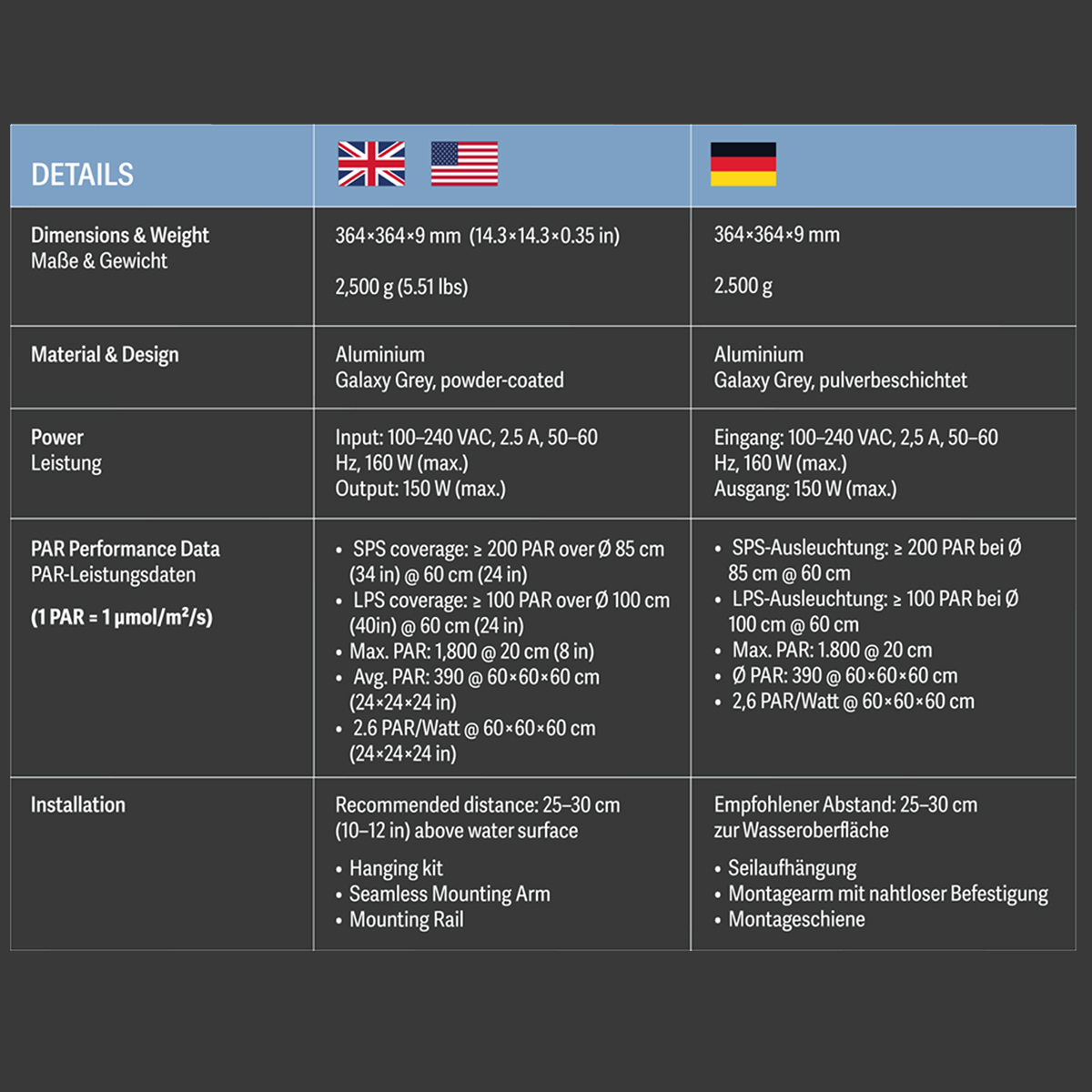

Specifications

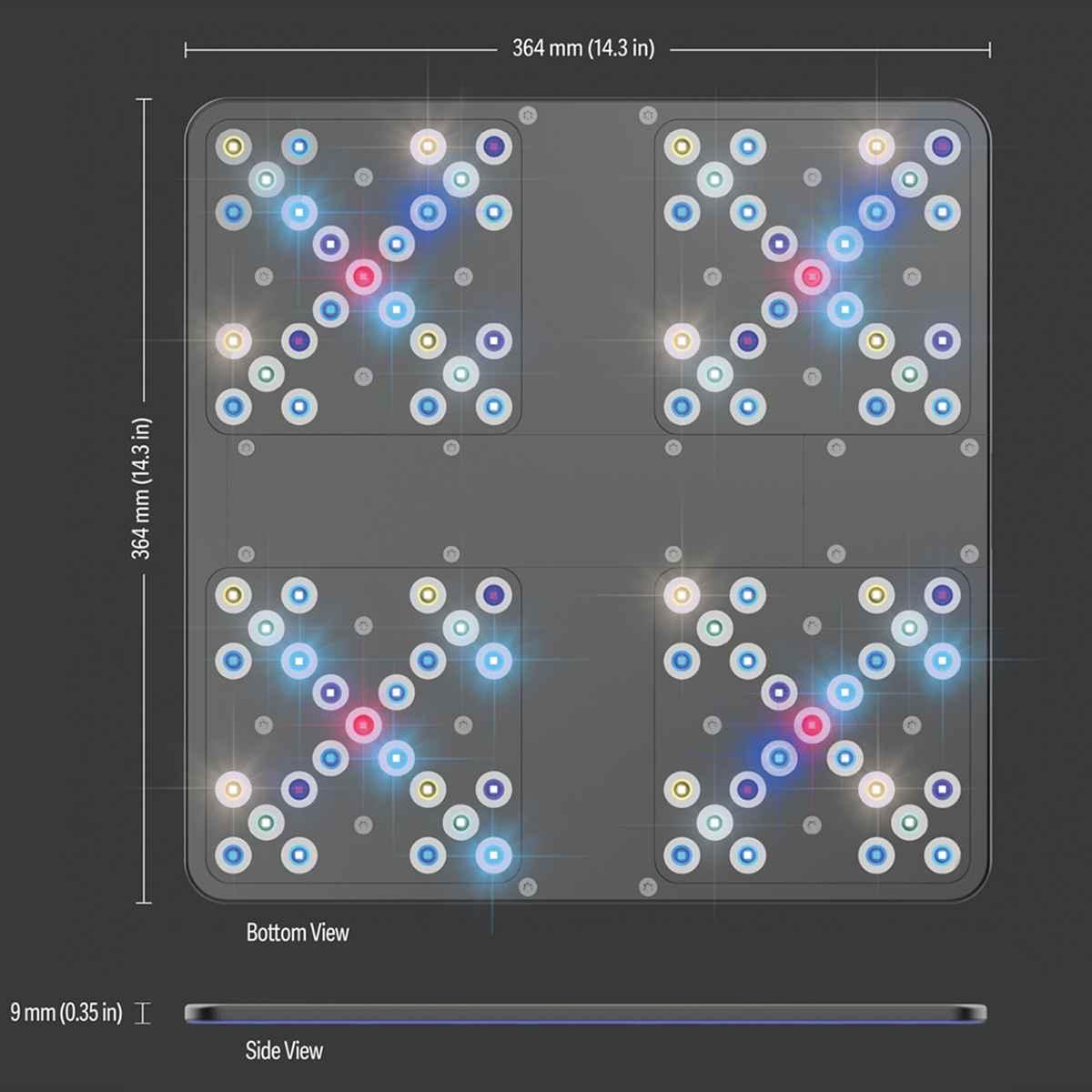

- Dimensions: 14.3 in. x 14.3 in. x 0.35 in. (L x W x H)
- Weight: 5.6 lbs.
- Color: Anthracite Gray
- Power Consumption: up to 150W
- Power Input: 120v
- Power Cord Length: 6 ft.
- Warranty: 1-year manufacturer
Light Specifications
- Number of LEDs: 100; 8x UV 405nm, 8x Violet 420nm, 20x Royal Blue 450nm, 28x Blue 470nm, 16x Cyan White, 16x Clean White, 4x Red
- Number of LED Channels: 7 Channels
- Spectrum: Full Spectrum
- Lenses/Reflectors: Individual reflectors for each LED
- Recommended Illumination Area for SPS: 34 in. x 34 in.
- Recommended Illumination Area for LPS: 40 in. x 40 in.
- Recommended Maximum Depth for Corals: up to 36 in.
- Control: Wi-Fi Controllable
- Mounting Options: ATI Straton X Mounting Arm and ATI Straton X Hanging Kit (Both sold separately)
- Suggested Mounting Height: 8-12 in.
What's Included (i.e., what’s in the box)
- ATI Straton X Flat Panel LED Light - Anthracite Gray
- Power Supply
