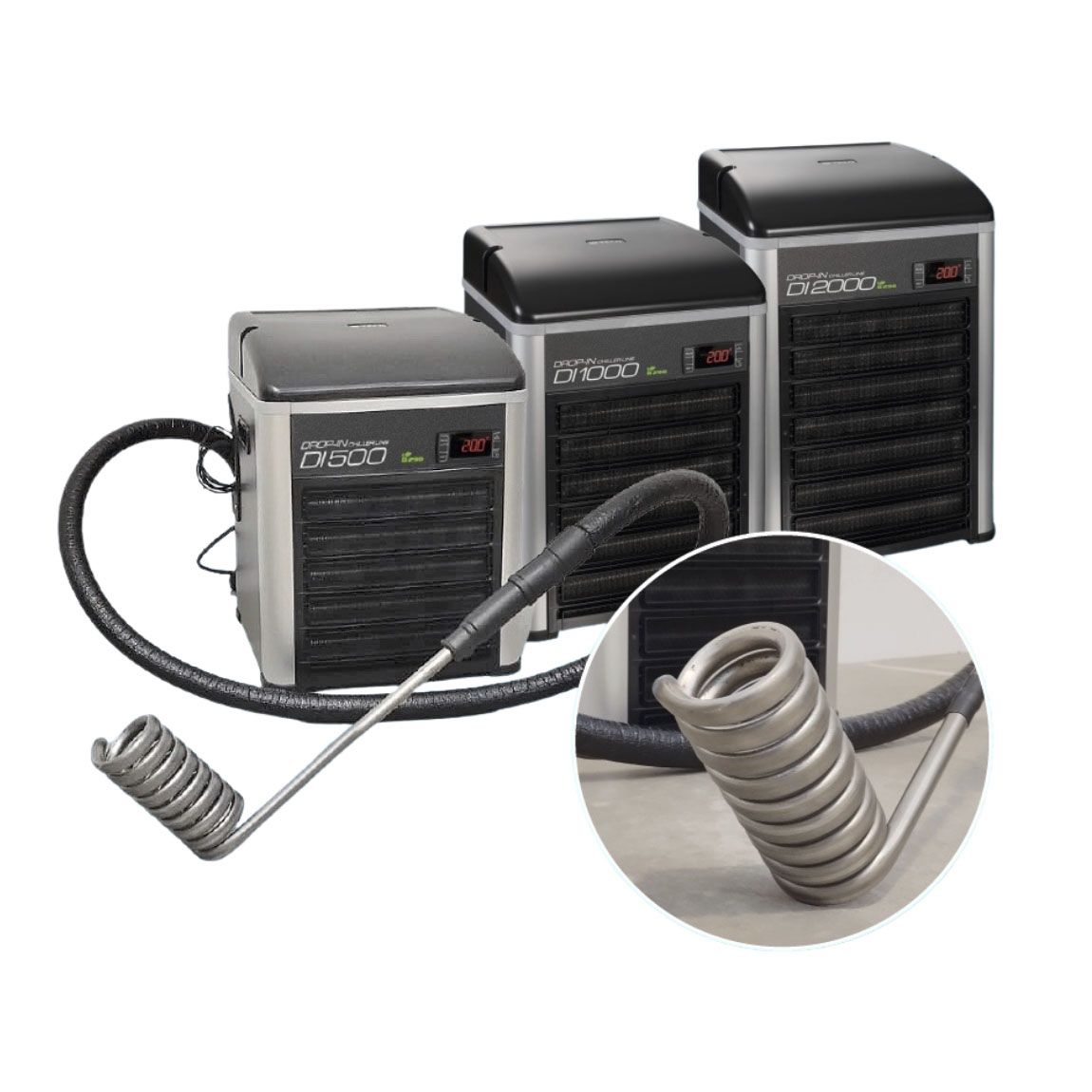

Teco Tank DI-500 Drop-In Chiller
Drop-In Chiller for aquariums, hydroponic systems, and water applications requiring flexible installation
Our NEW TECO DI-500 Drop-In Chiller introduces a revolutionary approach to water cooling by eliminating the need for plumbing modifications or inline installation. Utilizing a corrosion-resistant titanium heat exchanger coil that is placed directly into the water, the DI-500 provides efficient and reliable temperature control while offering installation flexibility.
Designed for aquariums, hydroponics, aquaculture systems, temporary installations, and retrofit applications, the DI-500 is ideal for users seeking a simple plug-and-play cooling solution. The compact design allows the chiller to be installed without disrupting existing filtration or circulation systems, making it one of the easiest cooling solutions available today.
Powered by TECO's advanced refrigeration technology and environmentally friendly R290 refrigerant, the DI-500 delivers exceptional cooling performance while reducing energy consumption and environmental impact.
| Dimensions |
310 × 310 × h416 mm
12.2 × 12.2 × h16.38 in
|
|---|---|
| Weight |
15.7 kg
34.6 lb
|
| Power supply |
230 V - 50 Hz
115 V - 60 Hz
|
| Water tank capacity* |
500 liters
130 gallons
|
| Min water flow |
2400 l/h
634 US gal/h
|
| Ambient temperature range |
16°C - 38°C
61°F - 100°F
|
| Water temperature range |
5°C - 30°C
41°F - 86°F
|
| Refrigerant | R290 |
| Display temperature | °C (also °F available on request) |
| Heater | Not available |
- Reduces energy consumption by 30% to 50%
- Replaces traditional ozone-damaging refrigerants
- Scores 3 out of 150 on the Global Warming Potential (GWP) scale
- Environmentally responsible cooling technology
DROP-IN TITANIUM HEAT EXCHANGER
The high-efficiency titanium coil is designed to be submerged directly into the water, providing excellent heat transfer and maximum corrosion resistance in both freshwater and saltwater applications.
EXTERNAL TEMPERATURE PROBE
Unlike traditional chillers that monitor temperature internally, the DI Series features an external temperature probe that continuously measures the actual water temperature within the aquarium, sump, or reservoir. This allows for more accurate temperature monitoring and improved cooling control, helping maintain a stable environment for aquatic life and sensitive growing systems.
NO PLUMBING REQUIRED
Unlike traditional inline chillers, the DI-500 requires no plumbing modifications, fittings, or dedicated water connections. Simply position the titanium coil in the sump or reservoir and begin cooling.
FLEXIBLE INSTALLATION
Perfect for existing aquariums, hydroponic reservoirs, aquaculture systems, temporary setups, and emergency cooling applications. The drop-in design allows for fast installation and easy relocation when needed.
DIGITAL TEMPERATURE CONTROL
Intuitive electronic thermostat provides precise temperature management with accurate monitoring and dependable operation. Displays in °F or °C for user convenience.
DURABLE TECO CONSTRUCTION
Built with the same premium quality and reliability that has made TECO chillers the preferred choice of aquarium professionals worldwide. Corrosion-resistant materials and high-quality components ensure years of dependable performance.
