ReefBreeders Meridian 63 LED Fixture

• Ocular Holo Matrix (OHM) Optics, Encompas, Balance, and Focus
• Balance- Default optics, the perfect balance between diffusion and intensity. For aquariums up to 36" top to bottom.
• Focus- Narrower optics fine tuned to provide power in tanks deeper than 36" top to bottom.
• Encompas- Wider optics designed to maximize coverage area in shallower reef tanks.

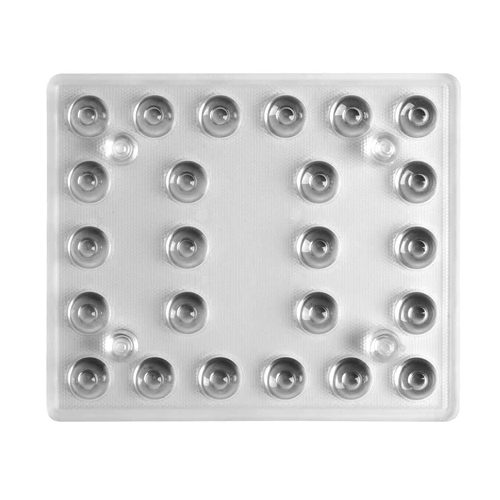

The new OHM optics encompas the entire LED matrix with no seams around each individual LED, further protecting the LEDs from splashing and moisture.

All Meridians size 24 and up have multi-panel control. On the Meridian 24, the left and right side are controlled independently, on the 35/45 and 63, the center and outer clusters are controlled independently.

Larger power supplies are available- multipl Meridians, or a Meridian plus 2 Meridian Edges can be daisy-chained, up to 600watts in total power. In other words, up to 8 Meridian 11s, or a Meridian 45 plus 2 Edge 45 Bars.

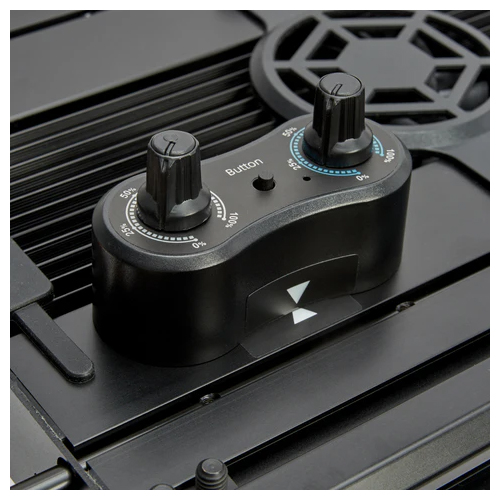

The onboard wireless controller accepts both wifi and bluetooth. An option plug in manual controller can be used with the Meridians, and all Meridian Edges have a built in manual controller. The controller can be used to set 8/10/12 hour schedules, with moonlighting on the Meridians.

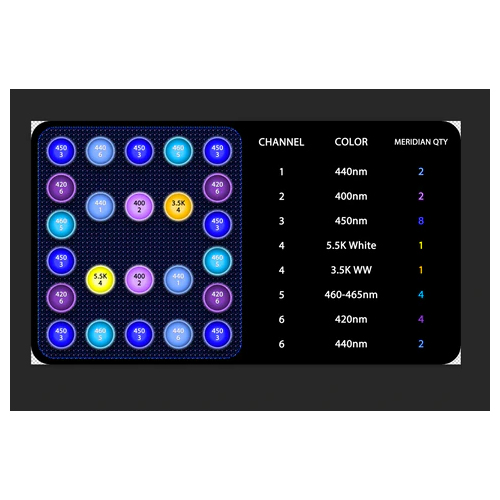

The LED layout has been updated for maximum efficiency based on the settings used by the majority of Photon users. That means there is no wasted power on the white LED channel, nor is power wasted on red/green LEDs. This represents an efficiency increase of 30% or more.

All hardware on the Meridian/Edges is black to match the case color, including hangin wires, mounting legs, and the bolts used for mounting hardware.

New and improved ReefBreeders app with improved UI, and continual updates with new features available shortly after release. Bluetooth control, custom color channels, acclimation mode, real time sunrise/sunset and moonrise/moonset times, and more to come.

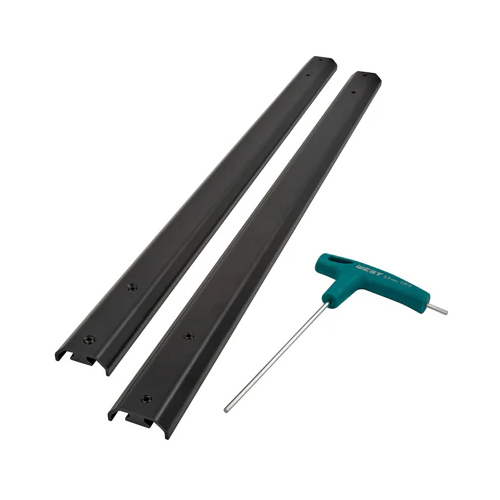

Updated back of tank mount that can support a single row of Meridians, or up to 6 Meridian Edge bars. Integrated channel to hide wires inside the mount.

Each Meridian includes a wire hold that slides into the front or rear accessory mount and secures the power cable to the light.

Custom molded right angle plugs direct the power cord towards the rear of the light, and reduce the profile of the plug significantly for a seamless look.

Updated case finish, and sealed case with gaskets added to either end.

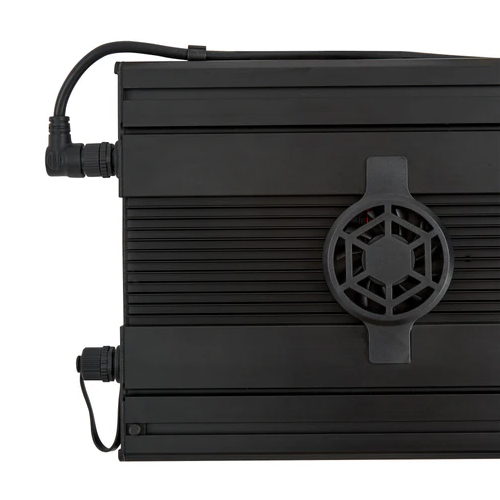

Fans no longer direct air through the lights assembly- instead they are positioned on top of the light, and the fan wires are fully sealed to prevent moisture from intruding into the lights case.

100% More UV/VIolet vs Photons, 33% more Royal Blue Vs. Photons, Increased Blue:White Ratio 5.5X

25% More Wattage Per LED Cluster VS Photon 24/48/50

30% more efficient allocation of LED power based on metrics from Photon users. The majority of Photon users run white, green, and red LEDs at 30% or less vs. the blue channels. By changing the blue to white ratio and replacing the red/green with warm whites, each channel can be run at the same intensity, maximizing the usability of the Meridian's power.

Up to 2 Meridian Edges can be mounted to a Meridian using articulating mounts that connect via the front and rear hardware mounting channels. They can be set to multiple angles for ideal coverage.

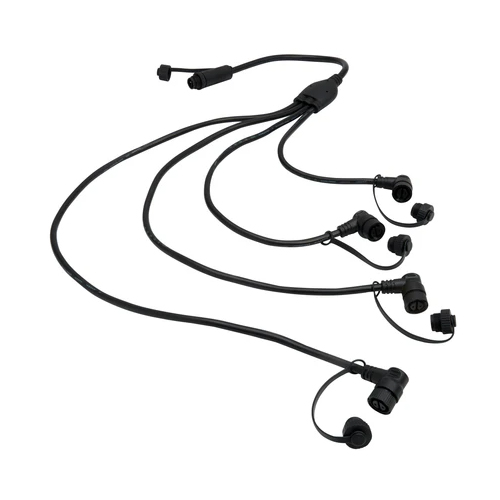

Up to 4 Meridian Edge bars can be plugged in using a single power cord.

Plug 2 Meridian Edge Bars into a Meridian, when paired with a single larger power supply.

Connect Meridians 1 into the other using a Daisy chain cable. Paired with a larger power supply, up to 600watts or 5 Meridian 11s can be connected to a single power supply, with only 1 cord from the wall.

LED layout can be made to order, and the color channels in the Reef Breeders app can be edited to reflect changes made to the layout.

Compatible with all styles of aquarium including eurobrace.

Providing more efficient thermal cooling, and a new more durable premium coating
