Red Sea REEF-FRAME MAX 250
Description

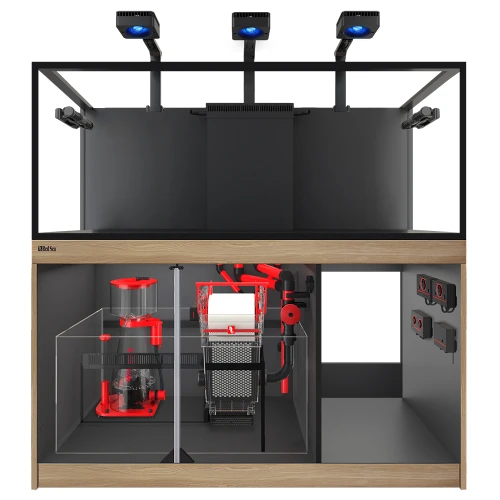

REEF-FRAME Concept
The REEF-FRAME line of popular-sized reef systems blends years of hobbyist input with precision engineering and forward-thinking design. All models feature eurobracing for added strength, ultra-clear glass bonded with high quality euro-silicone for long-lasting structural integrity, and new plywood cabinets designed to fully support the glass structure.
These beautiful aquariums provide a lasting frame, so you can create a stunning picture.
REEF-FRAME systems are available in a fully bare version for complete customization, or a MAX version equipped with a full ecosystem of ReefBeat smart devices.
Features:
Eurobraced ultra-clear glass
REEF-FRAME aquariums are made of ultra-clear glass with increased thickness of up to 15 mm/0.59”, eurobraced for extra strength, and bonded with high quality euro-silicone for long-lasting, structural integrity.
10-15mm Ultra clear glass
(Thickness per model)
Extra fortified cabinet
REEF-FRAME aquariums are mounted on marine-spec plywood cabinets designed to support the full contour of the glass, with adjustable feet for perfect levelling. REEF-FRAME cabinets are also available in a classic oak finish in addition to black and white.
Laminated plywood cabinet
Adjustable feet
Stainless steel hinges
Pump return outlets
Curved return outlets and silent overflow box
REEF-FRAME systems feature 25 mm curved return outlets for optimal flow. The REEF-FRAME 350 and 500 models include dual return outlets for single or dual return pump systems. Return piping is concealed inside a large central overflow box with a large surface skimmer and removable comb sections for easy cleaning.
Dual return pump outlets
Highly effective surface skimming
Optimal water circulation
Surface skimmer
The piping is hidden inside a large central overflow box, which has a large surface skimmer with removable comb parts, for easy cleaning.
Silent downflow system
The downflow pipes are enlarged to promote quieter flow, with a rectangular profile for enhanced circulation.
ReefGate high-precision flow valve
REEF-FRAME systems include the new ReefGate, high-precision bespoke gate valve on the downflow pipe, allowing for easy regulation of the flow and a near silent operation.
Hydrodynamically superior piping
REEF-FRAME systems feature hydrodynamically superior piping that maximizes circulation, with optional connector kits in both metric and USA sizes for piping customization.
Reef Spec sump
The high-performance Reef Spec sumps include a dedicated skimmer chamber with adjustable water height, an optional sump divider for a dedicated refugium chamber (not available for the 170 model), a ReefMat-ready easily removable mechanical filtration compartment, and a bubble trap to prevent air bubbles from returning to the aquarium.
ReefMat-ready
The easily removable mechanical filtration compartment allows for a quick Plug & Play installation of the ReefMat 250/500/1200.
Easy setup
Easy maintenance
Solid state sensor
Register your REEF-FRAME within 90 days of purchase
And turn your standard 3-year warranty into 5 years, at no extra cost!
| REEF-FRAME Model | 170 | 250 | 350 | 500 |
|---|---|---|---|---|
| Total Water Volume(gal) | 46.2 | 65 | 93.4 | 136.3 |
| Display Tank Water Volume(gal) | 35.9 | 53.9 | 74.6 | 107 |
| Sump Water Volume(gal) | 10.3 | 11 | 18.8 | 29.3 |
| Display Tank Length | 23.6" | 35.4" | 47.2" | 59.1" |
| Display Tank Width - Excluding light | 20.1" | 20.1" | 21.6" | 22.6" |
| Display Tank Height - Excluding light | 20.9" | 20.9" | 20.9" | 21.6" |
| Total System Height - Excluding light | 53.9" | 53.9" | 53.9" | 55.9" |
| Ultra-Clear front glass | 0.39" | 0.47" | 0.47" | 0.59" |
| Ultra-Clear side glass | 0.47" | 0.47" | 0.59" | 0.59" |
| Bottom Glass | 0.39" | 0.47" | 0.47" | 0.59" |
| Back Glass | 0.31" | 0.39" | 0.47" | 0.59" |
| Bracing | Eurobrace | |||
| Aquarium Support | Full Cabinet | |||
| Main System Pump | 1x ReefRun G2 4000 | 1x ReefRun G2 4000 | 1x ReefRun G2 6000 | 1x ReefRun G2 8000 |
| Water Circulation Pump | 1x ReefWave 25 | 2x ReefWave 25 | 2x ReefWave 25 | 2x ReefWave 45 |
| ReefLED light system | 1x ReefLED G2 115 w/ Mounting Arm | 2x ReefLED G2 115 w/ Mounting Arm | 2x ReefLED G2 115 w/ Mounting Arm | 3x ReefLED G2 115 w/ Mounting Arm |
| Return outlet nozzles | 1x25mm(single pump) | 1x25mm(single pump) | 2x25mm(single or dual pump) |
2x25mm(single or dual pump) |
| Hydrodynamic piping with Gate Valve | ✅ | ✅ | ✅ | ✅ |
| Protein Skimmer | 1x Reefer DC Skimmer RSK 300 | 1x Reefer DC Skimmer RSK 300 | 1x Reefer DC Skimmer RSK 600 | 1x Reefer DC Skimmer RSK 600 |
| Reefmat/Nanomat | 1x ReefMat 250 | 1x ReefMat 250 | 1x ReefMat 500 | 1x ReefMat 1200 |
| ReefControl Controller | ReefControl Pro | |||
| ATO Module | ReefControl ATO Module | |||
| Reefsense pH/Temp Probe | 1x ReefSense pH/ temperature probe | |||
