IM AUQA Gadget - Helio Heater - 350 Watt
Aquarium Size: 50 - 100 Gallons
*Based on +10°F water temperature increase from current ambient temperature.
Heating Element Dims: L 15.25" x D .80"
Remote Sensor Dims: L 2.3"L x D.31"
Helio Smart Controller Dims: L 3.13" x W 1.31" x H 5"
Helio PTC Smart Controller Specifications
- Factory Preset Temperature: 77°F
- Factory Preset Low Alarm: 74°F
- Factory Preset High Alarm: 80°F
- Temp Set Range: 59° - 95°F
- Low Alarm General Range: 57° - 93°F
- Low Alarm Minimum Range: -2°F from Set Temperature
- High Alarm General Range: 60° - 96°F
- High Alarm Minimum Range: +1°F from Set Temperature
- Accuracy: < ±1°F
- Resolution: 0.1°F
- Calibration Range: ±9°F
- Watt/Amp Draw: 350W 120V / 2.92amps
- Product Weight: 5.49 lbs.
Error Code Quick Guide
E1-Remote Sensor Not Connected: The remote sensor is not connected. Check the connection between the controller and the remote sensor.
E2-Element(s) Not Connected: One or both elements are not connected. Check the connection between the controller and element(s).
E3-High Temperature Alarm: The aquarium's water temperature has exceeded the high temperature set point.
E4-Low Temperature Alarm: The aquarium's water temperature has subceeded the low temperature set point.
E5-Element (I) Error: Element (I) is out of water or low water flow detected around element (I).
E6-Element(II) Error: Element (II) is out of water or low water flow detected around element (II).
E7-Remote Sensor Error: Remote sensor has been detected to be out of water or a sudden temperature swing.
When the temperature of the ceramic chip heating element increases, the sensor on the chip itself reads the increase and will increase its electrical resistance resulting in decreased heat output. This simply means that as the heating element gets hotter, it will become relatively more difficult to become hotter. Safety is inherently built in and not added on.
Now, after we reengineered and redesigned as well as incorporated the latest reef aquarium technologies, the PTC self-regulating heater and its components are ready to operate safely and efficiently in a harsh marine reef aquarium ecosystem.
The mastermind behind the HELIO Heating System is our PTC smart controller, which bridges the gap between hobby grade and commercial heating systems. The smart controller’s processor goes hand in hand with the PTC heating elements to keep your temperature stable. Communicating back and forth with the elements and alerting you immediately after any fluctuations in temperature have been detected.

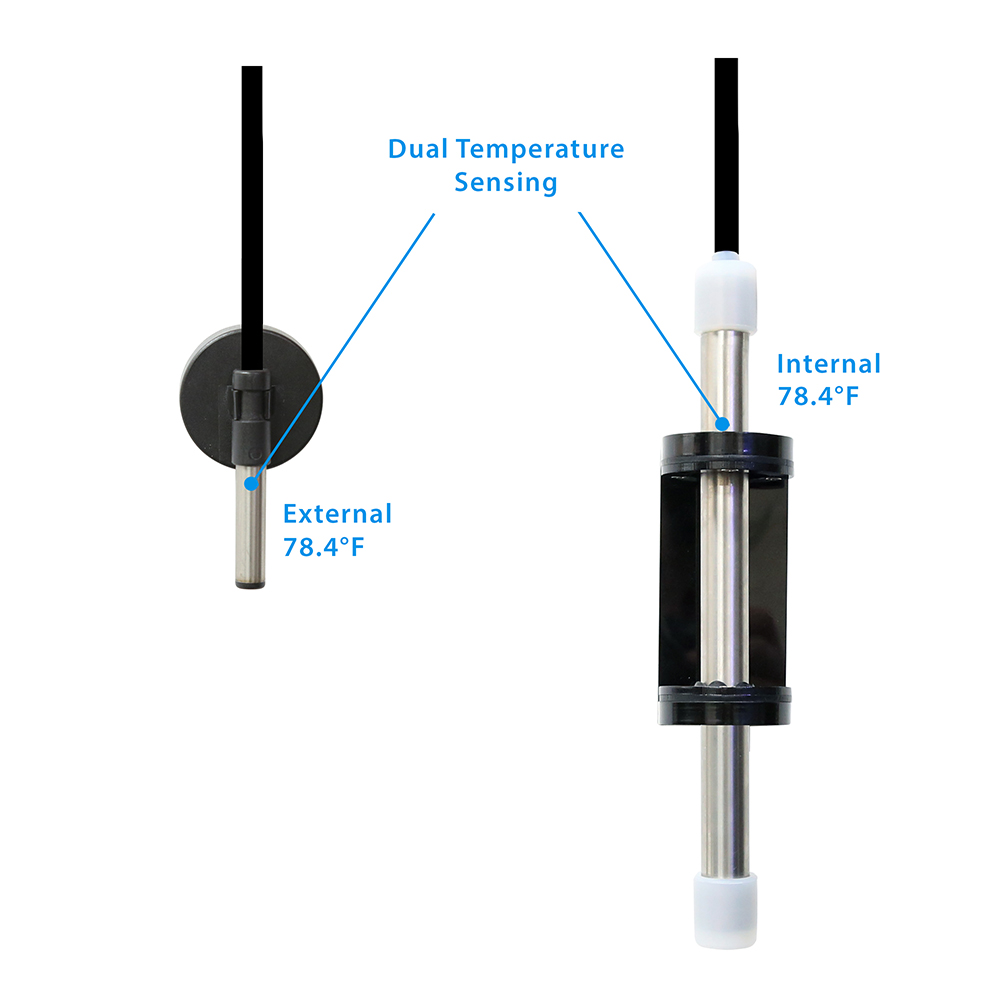

The PTC smart controller has been fitted with a titanium remote temperature sensor and dual heating element power lines. Since each heating element has its own built in temperature regulation system, there’s safety in redundancy from the controller’s temperature sensor. And if dual heating elements are employed, there is yet another level of safety added to the system.
Each piece of the HELIO heating system was created to work harmoniously together. Commercial grade titanium heating sheaths and screws prevent corrosion. Rare earth magnetic heating element holders allow optimal water flow. Quick disconnects for the controller’s temperature sensors and heating elements make for easy maintenance and upgradeability.
After years in development, the HELIO heating system possesses powerful features that exceed current reef aquarium heater expectations and achieve three main objectives: Increased safety. Improved reliability. And to provide a new reef aquarium heating technology superior to the long held standard.
HELIO PTC Titanium Heating System.
Smart. Safe. Stable.
