Icecap ATO Top-off

Icecap ATO Top-off

The IceCap ATO is a reliable dual optical sensor Auto Top Off management system that monitors and automates refilling evaporated water. Includes everything needed to install and operate.

SAFELY KEEP WATER & SALINITY LEVELS STABLE

• Easy to install magnet mount sensor base
• Dual optical sensor design for added safety
• No moving parts to fail
• Integrated fail-safe protection
• Compact design
• Manual top off function
• Plug and play
• Detachable components
• Equipped with DC feed pump
• 1-Year limited warranty

REPLENISH EVAPORATED WATER... WITH CONFIDENCE!

An Auto Top Off (ATO) system is notably one of the most important pieces of equipment for a saltwater aquarium and simply a must have for any reef keeper. The IceCap ATO monitors and replenishes evaporated water eliminating the daily task of adding water manually just to keep your aquariums water stable.

Reliable

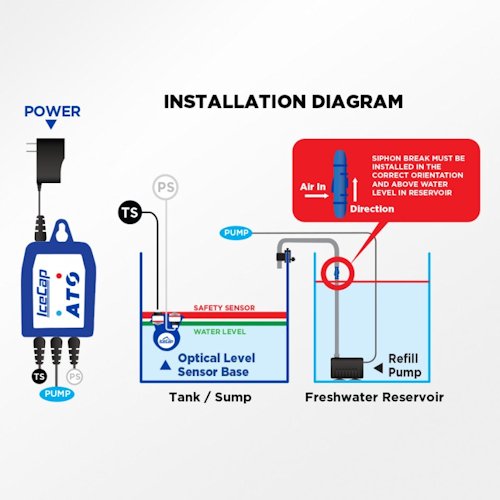

The IceCap ATO is a well thought out automated system with a fail-safe design that uses two (2) optical sensors to monitor the fluid level of your aquarium or sump. The second optical sensor provides real-time protection against failure of the first sensor. Best of all, it is very easy to install and contains no moving parts that can fail.

Safety

The IceCap ATO also alerts you when your top off reservoir gets dangerously low to prevent the water pump from running dry. A bright LED indicator will allow you to visually see the status of your IceCap ATO as well as any possible issues.

Plug and Play

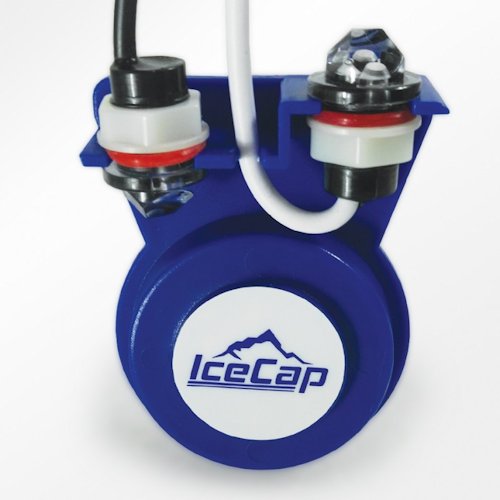

You simply move the magnet optical sensor base to the desired water level within your sump or aquarium. It’s that easy!

Mounts to Most Clear, Tinted or Painted Surfaces
Max wall thickness: 1/2 inch (12.7mm)

Everything Included!

Everything provided for installation and operation.

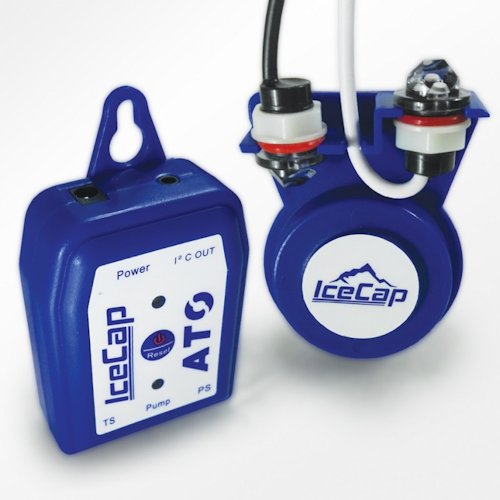

Includes:

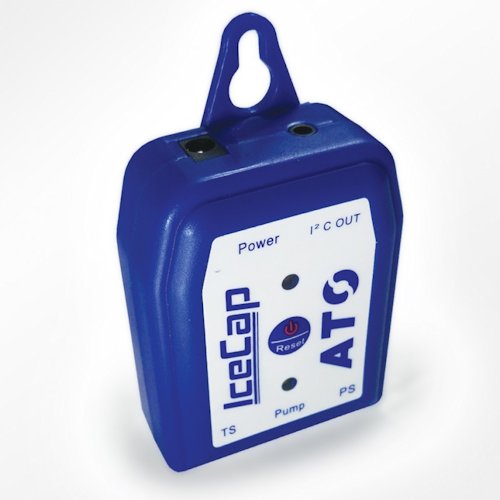

• controller,
• 2x optical sensors,
• power adapter,
• DC brushless pump capable of pumping to a height of ~6 feet and a maximum flow rate of ~74 gph and
• 6.5' of water tubing with tubing holder.

Will work in complete darkness!

IceCap ATO Specifications

• Brushless DC Feed Pump
• Brushless (30000hrs)
• Max Head: 6ft
• Flow rate: 50GPH
• Power: 4.5W@DC 12V
• Pump cord length: 5.5ft
• Power cord length: 5.5ft

Pump tubing size: Inner diameter: 6.5mm, outside diameter: 8mm Length: 6.5ft

Note: It is possible to change to the other PUMP or solenoid valve directly(< 10W@12VDC output)

Warranty Information

1. This product is guaranteed for one(1) year from the date of purchased at normal operation.
2. The warranty is not transferable.
3. Any incorrect operation will not be warranted and will result in a repair fee.
4. All warranty repairs are performed by CoralVue.
Please contact us to obtain a Return Authorization number when sending a warranted unit.
5. This guarantee is effective at the date listed on your sales receipt.
