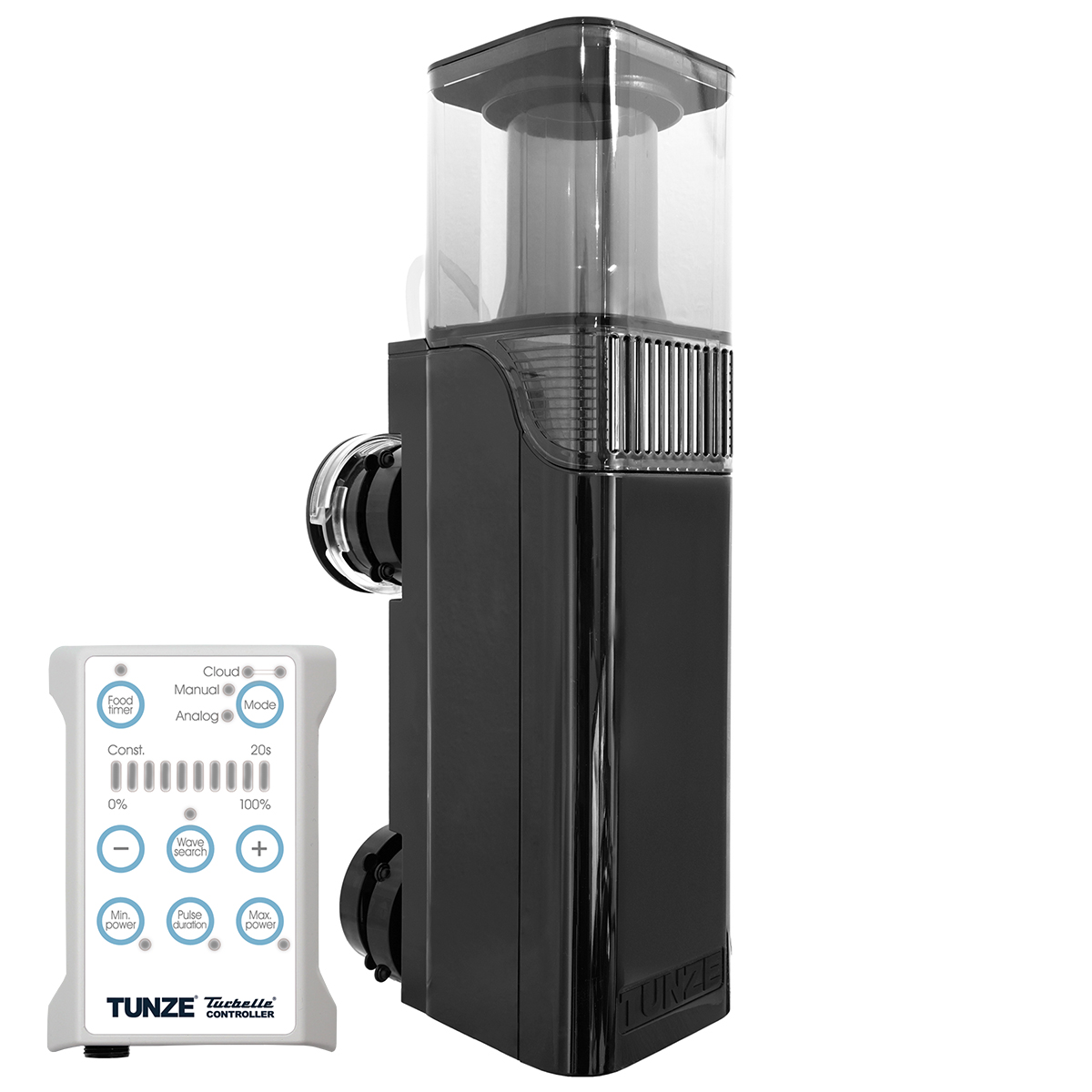

Tunze Comline® DOC Skimmer 9012 DC
TUNZE® HUB EDITION
Particularly quiet and less energy consumption than the previous model!
Safety extra-low voltage 12V (SELV).
Recommended, depending on tank load, from 300 to 1,000 liters (79 to 317 USgal.) of sea water.
Immersion depth: approx. 255 to 285 mm (10" to 11")
Skimmer cup volume: 0.7 liters (0.18 USgal.)
Air capacity: approx. 400 l/h (118.9 USgal./h)
Energy consumption: 9 W at 12V
Power supply unit: 100-240V / 50-60Hz
Cable length: 3 m (118.1 in.) up to the WiFi Turbelle® controller 7020.500
Dimensions (L x W x H): 140 x 110 x 415 mm (5.5" x 4.3" x 16.3")
Silence Magnet Holder up to a glass thickness of 15 mm (2/3").
How do you select the right DOC skimmer for a marine aquarium?
Due to its biotope composition, every marine aquarium has a different sensitivity with respect to the organic load. Based on a standard marine aquarium with leather corals, the data on the suitable aquarium size may differ for other biotope compositions. For this reason, the aquarium volumes recommended for the skimmer should be reduced for more sensitive biotopes, if and when necessary.
Low sensitivity, no reductions
In...
leather coral aquariums with long-polyp corals and anemones, for example, the load of dissolved organic matter may be higher, sometimes it may even be vital.
The DOC Skimmer can be used for the recommended aquarium volume without reductions.
Average sensitivity, 40% reduction
Amedium organic sensitivity is usually found in mixed aquariums inhabited with leather and stoney corals (LPS). Filters, sponges, etc. can also be found there. A DOC skimmer that is designed for 1,000 liters (264 USgal.) is likely to only skim 40% of organic substances with this light pollution.
Thus, a DOC skimmer for 1,000 liters (264 USgal.) should be used for a tank with a maximum content of approx. 600 liters (158 USgal.).
Increased sensitivity, 60% reduction
Aquariums with primarily small-polyp stoney corals (SPS) require an especially high degree of purity. They should have no load of phosphates or nitrates worth mentioning. Good oxygen saturation and very clear water are the pre-requisites. In this type of aquarium, the DOC skimmer is frequently used as a "stand-alone solution".
Thus, a DOC skimmer for 1,000 liters (264 USgal.) should be used for a tank with a maximum content of approx. 400 liters (106 USgal.).
High sensitivity and high load,
70% reduction
Hard coral aquariums (SPS) with a high population of fish require an extremely high skimming capacity. The skimmer has to ensure the proper degree of purity for hard corals in case of an excessive fish burdening, whereas an especially high performance is required if it's used as a "stand-alone solution".
Thus, a DOC skimmer for 1,000 liters (264 USgal.) should be used for a tank with a maximum content of approx. 300 liters (79 USgal.).
Especially for Comline® DOC skimmers used as contact skimmers for breeding tanks with plankton, 70% reduction
Stone coral aquariums or other breeding tanks with plankton food require an especially high degree of purity. Good oxygen saturation and very clear water are the pre-requisites.
Thus, a Comline® DOC skimmer for 1,200 liters (317 USgal.) should be used for a tank with a maximum content of approx. 360 liters (95 USgal.)
The TUNZE® Comline® opens the...
way for compact aquarium components for internal operation, ultra functional, sophisticated, with clearly defined lines.
The Comline® is a multi-functional product line: Surface and substrate zone intake, high flow propeller pump filter, flash protein skimming, the system creates a natural environment in the aquarium with a compact footprint. The goal, more performance from less space. Comline® components meet these requirements and the visual harmony of the aquarium is maintained. It is no longer necessary to hide technical equipment in the aquarium; instead, it forms an integral part of it. The system is highly effective; all organic pollutants are removed from the environment directly, while the path the water has to cover is short and direct. The risk of leakage is almost zero. The highly efficient technology enables reduction of the volume of the internal equipment, as well as significantly reducing the energy consumption .
Comline® DOC Skimmer 9012
The large Comline® DOC Skimmer 9012 is designed for use in mixed seawater aquariums / soft coral aquariums from 200 to 1,200 liters (53 to 317 USgal.), or for sensitive reef biotopes with hard corals up to 500 liters (132 USgal.). It operates according to the TUNZE® flash skimming principle and acquires the water through an efficient surface suction with a surface film removal, and can therefore also be used as a "stand-alone" solution in the aquarium. The TUNZE® Foamer generates large volumes of fine air bubbles with a diameter between .1 and .3 mm (.004" - .012") and is especially quiet during the operation. Silicone buffers on the skimmer prevent the transfer of vibrations to the aquarium glass pane. The Comline® DOC Skimmer with a Magnet Holder for glass up to a thickness of 15 mm (2/3") is delivered installation-ready.
Drive unit
... with 57% larger active area compared to its predecessor. It enables an effective foam formation even at particularly low and quiet speeds.
High efficiency
The Comline ® Foamer 9012.045 impresses with a maximum air output of 400 l/h with only 9 W energy consumption. Thanks to the high efficiency and the possibility of electronic speed control, it usually also operates in energy-saving partial load operation.

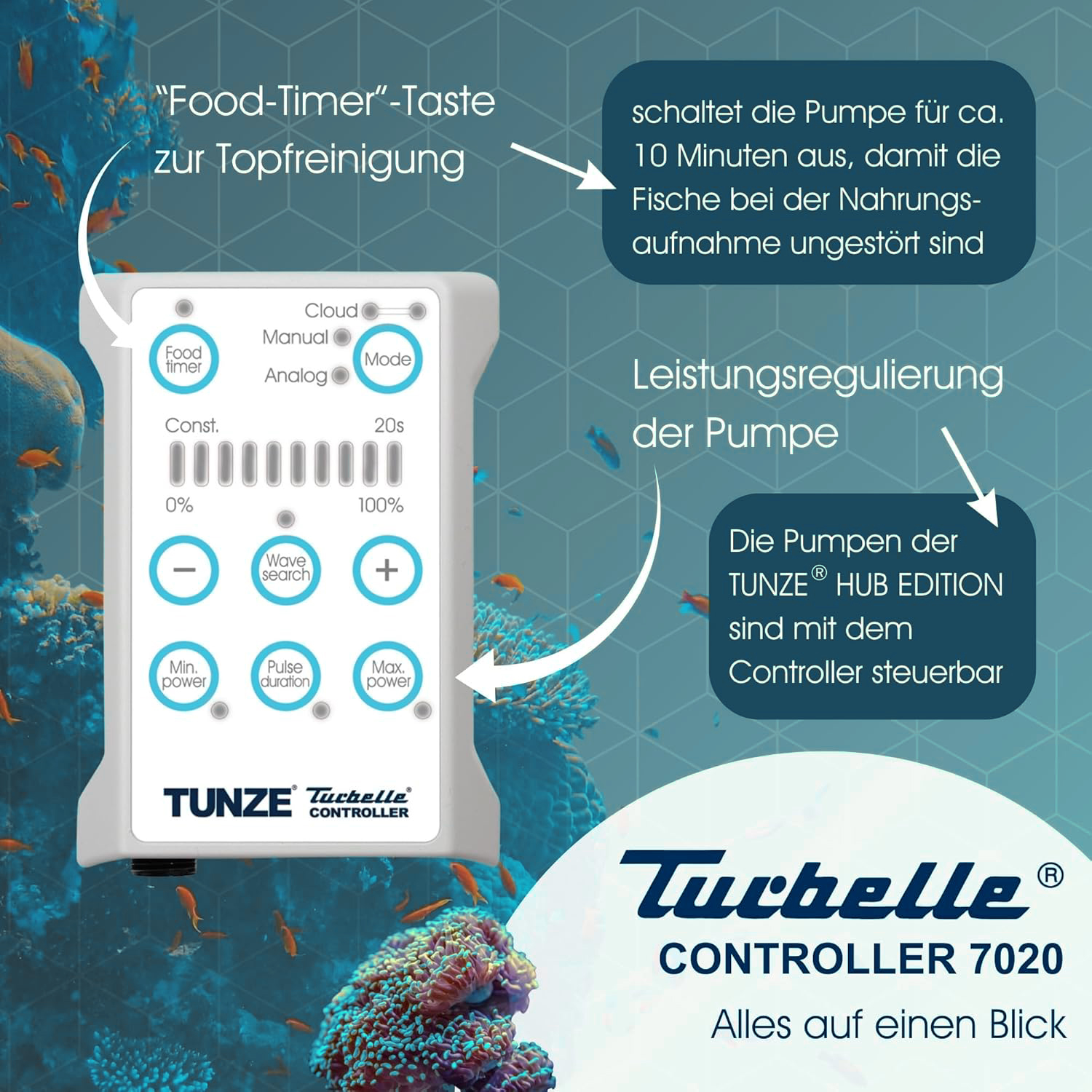

Power control by TUNZE® HUB.
Allows, for example, to reduce the output at defined times of the day or integrate it into the food timer routine.
